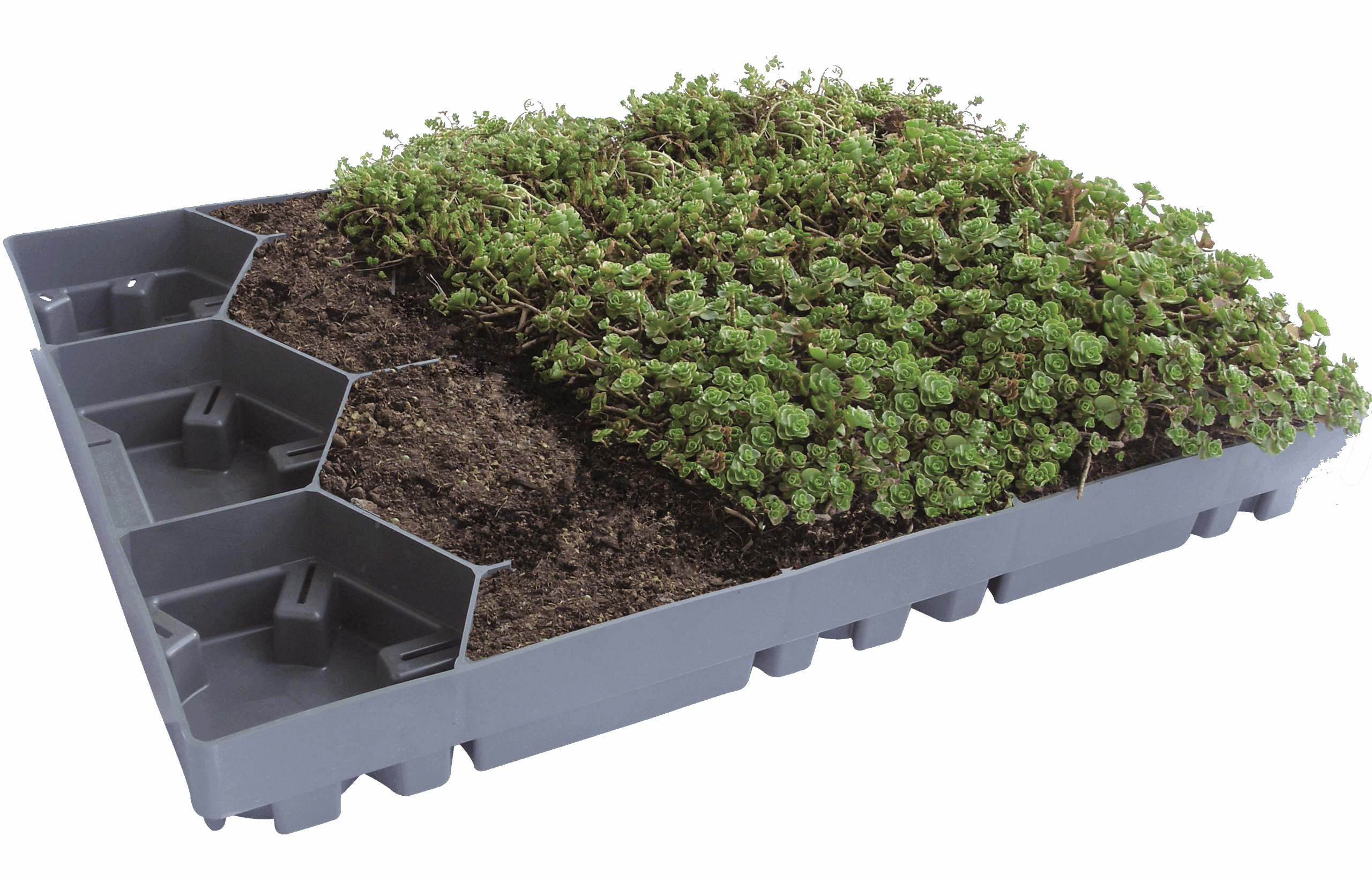

Einzelnes ECOgreen PACK Modul zeigt den Aufbau und die Befüllung mit Erde und Sedum-Bepflanzung
Freigestelltes Logo von ECOgreen PACK

A green roof is a good decision, because green roofs are increasingly becoming part of the modern look. They offer nature new spaces in our predominantly gray cities and make an important contribution to a better climate and an intact environment. A green roof not only enhances the appearance of your property! In fact, a green roof offers numerous ecological and economic advantages. ECOgreen® PACK unites these advantages and combines them with probably the simplest and most effortless installation.

Quickly create your own green roof by “unloading – lay down – done”. We will be happy to advise you.

Request now

Subsidies for green roofs

A green roof is not only good for the environment, but can also be financially attractive. Federal, state and local authorities offer a variety of funding programs and grants for the installation of a green roof. These can significantly reduce the investment costs and support the implementation of your project. Find out now about the current funding opportunities and how you can benefit from them:

Check promotion here

A green roof in a short time without green fingers.

ECOgreen® PACK enables you to create a simple green roof with immediately visible greening success. Apart from the simple cutting, there are just a few tips we would like to give you. You can send us detailed roof plans in advance of your construction project. We will be happy to advise you on the layout of the roof area.

Installation instructions
1

Unloading

Simply unload, remove the film - ready for installation! The ECOgreen® PACK is packed and ready to use. You can get started straight away without any additional tools or special knowledge. Important: Do not store in direct sunlight and lay within 48 hours - for optimum plant quality.
2

Lay down

Take the module, lay it out, dock it - it's that simple! Thanks to the clever grid system (60 × 40 cm), laying is quick and easy. If required, it can be cut to size using standard tools. No special know-how, no complicated accessories - just prepare cleanly and get started.
3

Done

After laying, simply water - and your green roof is ready for use! The ECOgreen® PACK provides stability, vegetation and function all by itself. The simple handling and the well thought-out system make finishing as uncomplicated as starting.
YouTube

By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video

Do you have any questions about ECOgreen PACK or a specific project? No problem - we will be happy to help you!

Request now

Discover the advantages of PURUS ECOgreen® PACK

Immediate greening success

ECOgreen® PACK is pre-planted and delivered to the construction site on schedule. As a rule, over 80% of the module is already visibly overgrown and the sedum is already hard-wearing. This is a great advantage if the installing company is paid when the greening is successful or if the building owners have little time or no access to the roof afterwards.

Quick and easy installation

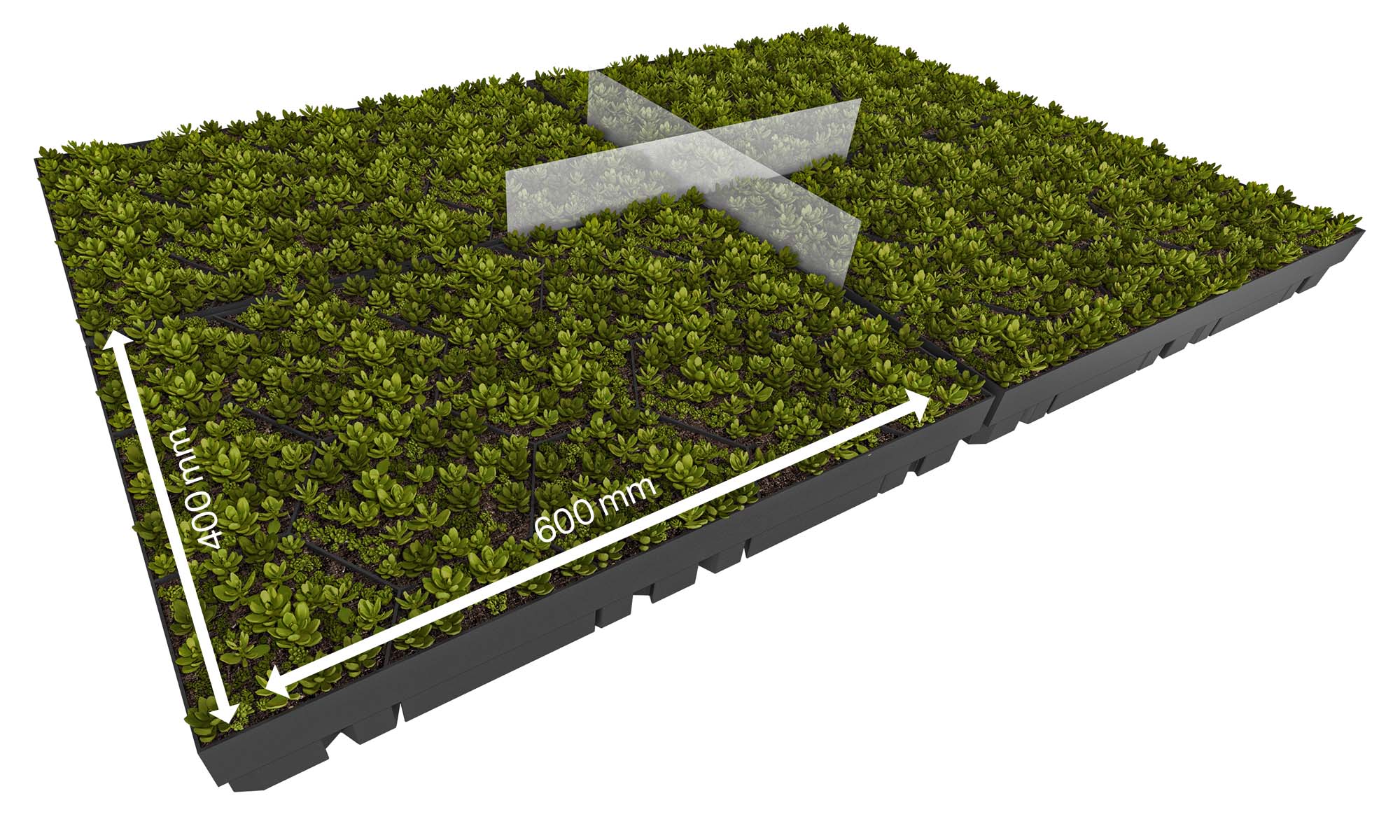

Each pre-planted module measures 400×600 mm and is therefore easy to handle. Adjustments and cuts can be easily made with the two-handed angle grinder. This means that roofs can be greened in a short time and without much effort.

Easy to clean handling

Green roofs should be inspected once a year. In addition to checking and cleaning the drains, this also includes the sighting and removal of foreign growth. The seeds of lime, maple and birch fly long distances and like to spread on green roofs. The drainage from ECOgreen® PACK does not provide the tree regrowth with sufficient space for a solid root, so growth is usually restricted.

Integrated rainwater retention

ECOgreen® PACK has integrated rainwater retention. Rainwater can only stand up to a technically specified level. If the water-retaining substrate is also saturated, any further precipitation is drained away via the integrated drainage slots. ECOgreen® PACK is currently available in two versions, classic (water retention: 36 liters per square meter) and light (water retention: 25 liters per square meter).

Easy reinstallation

If necessary, e.g. in the event of damage to the roof, the individual ECOgreen® PACK modules can be easily removed. The greening does not have to be vacuumed off or otherwise removed and disposed of at great expense.

Icon für PDF

Product brochure

Icon für PDF

Data sheet

Icon für PDF

Installation instructions

One system – many applications

Perfect for pitched roofs, monopitch roofs and flat roofs

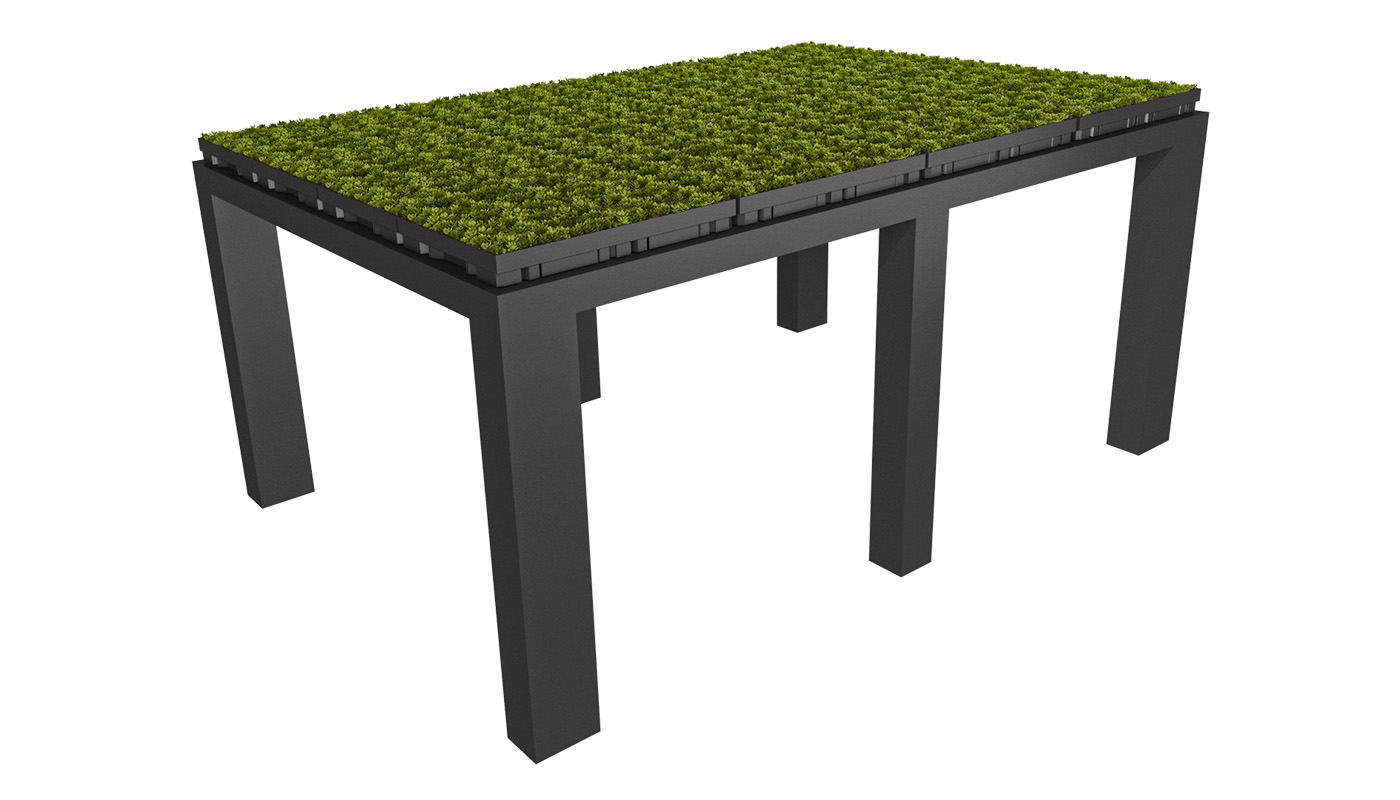

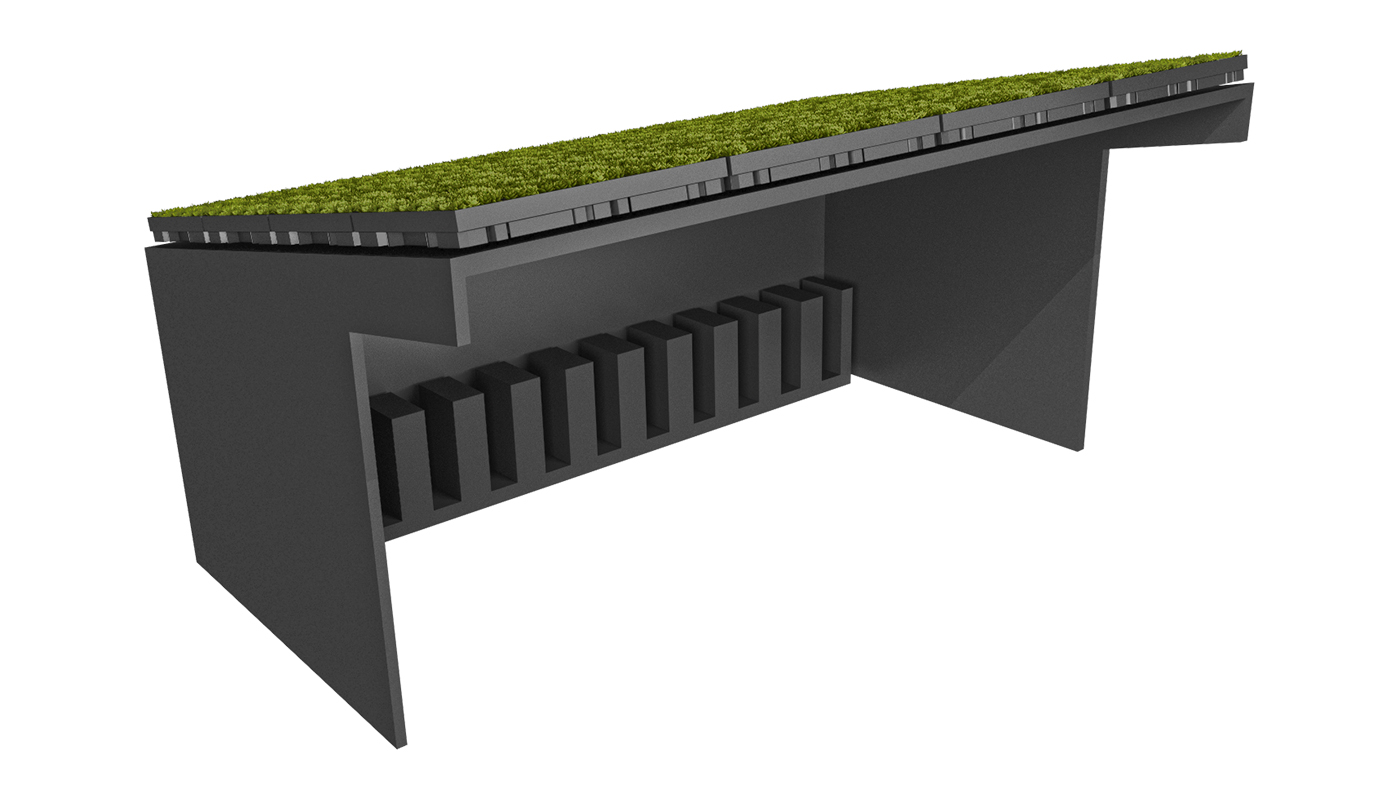

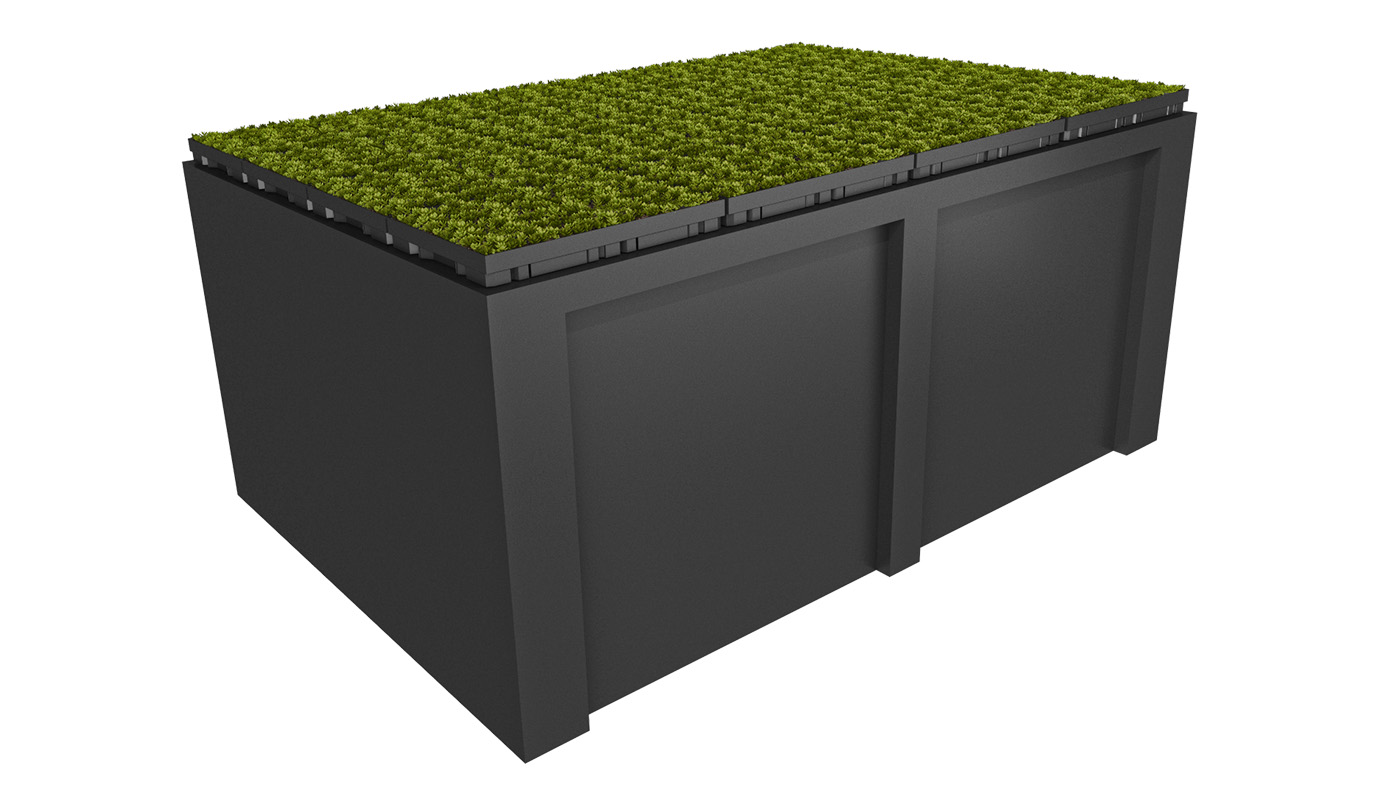

There are well over twenty different roof shapes! The most popular forms are probably the pitched roof, the flat roof and, for some years now, the extended monopitch roof. ECOgreen® PACK is suitable for Almost all roof shapes, flat and pitched. ECOgreen® PACK is a “do-it-yourself solution”, especially for flat roofs around private homes, for example carports, prefabricated concrete garages or terraces. Tradesmen from the roof sector – usually without green fingers – can become roof greeners in no time at all.

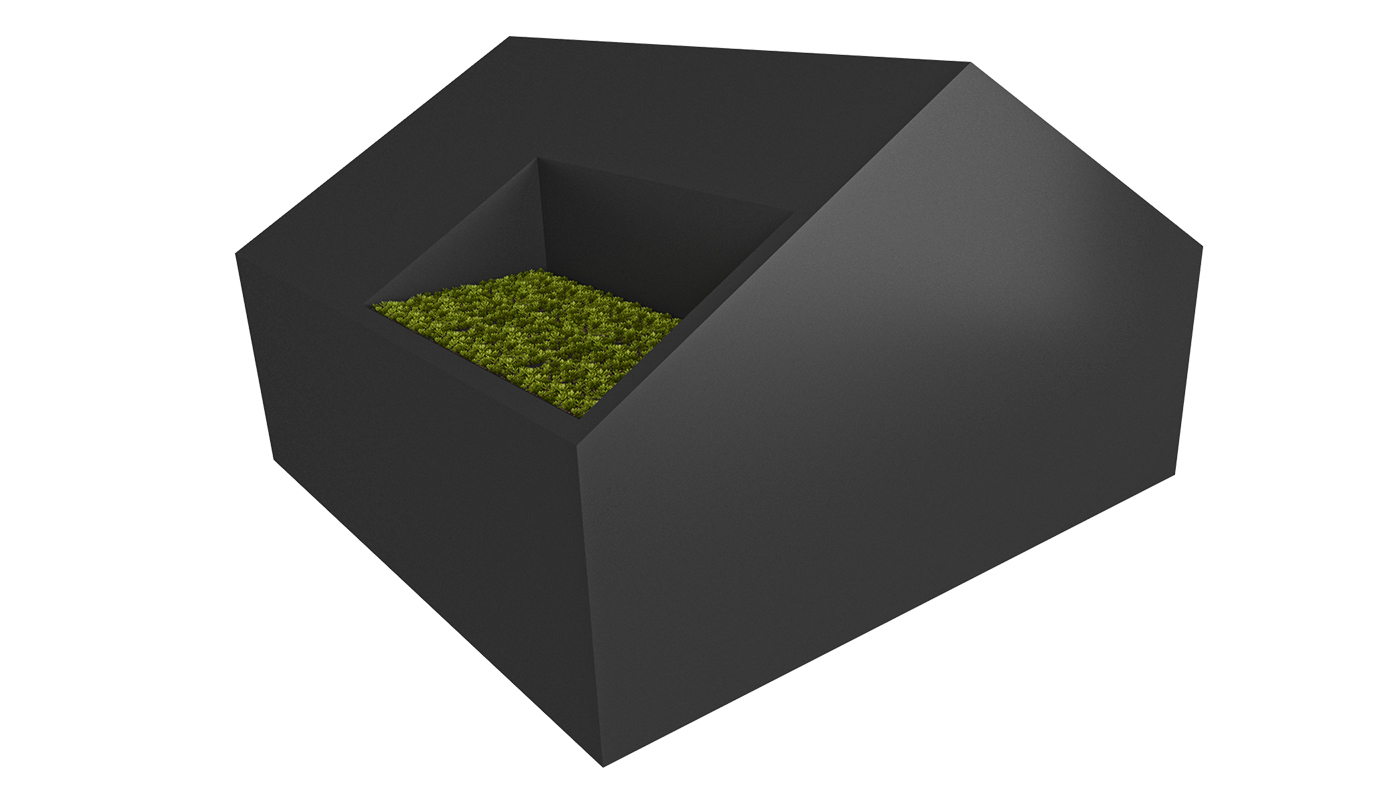

Is your project a partially greened roof terrace? Do you need to create maintenance paths? Then it’s best to combine ECOgreen® PACK withECORASTER® Bloxx. The ground grid system from PURUS PLASTICS is a German branded product and falls into the category of sealant-free ground reinforcement. Each ground grid is filled with four concrete blocks (granite on request) and securely hooked to the next grid. This provides additional safety on the roof!

ECOgreen PACK installation types

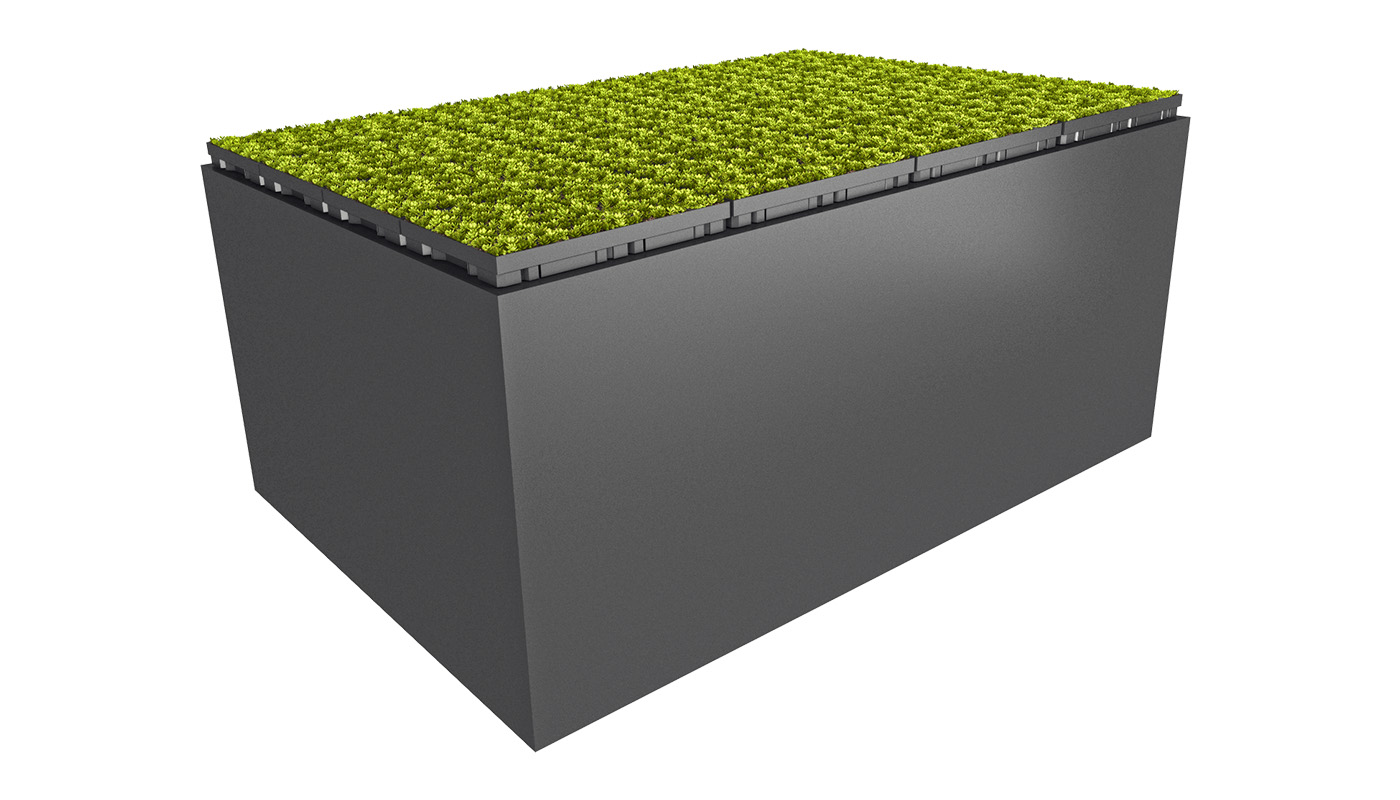

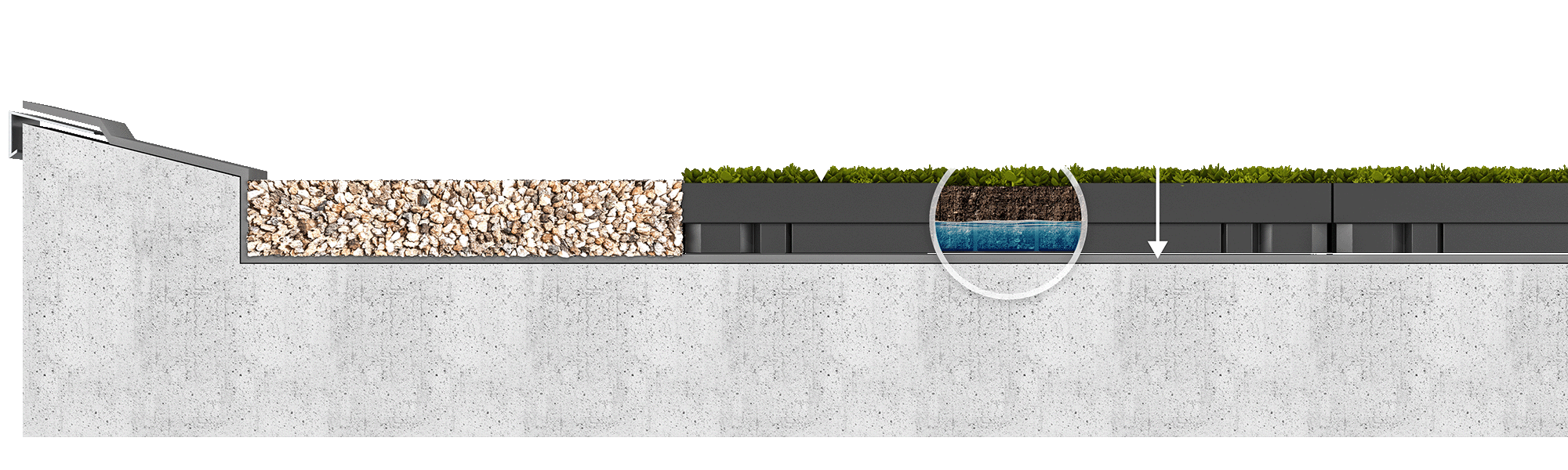

Flat roof

Grafische seitliche Darstellung der Verlegung von ECOgreen PACK auf einem Flachdach

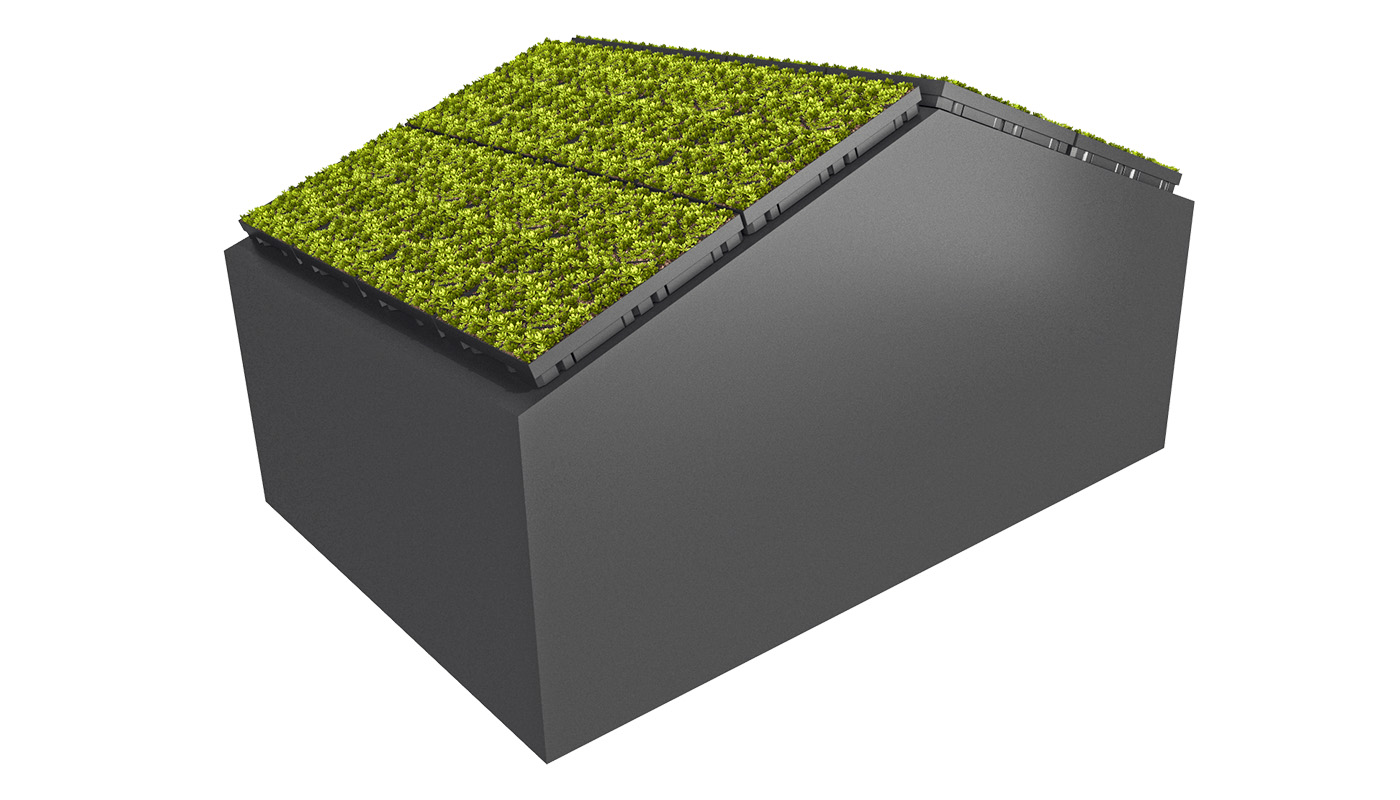

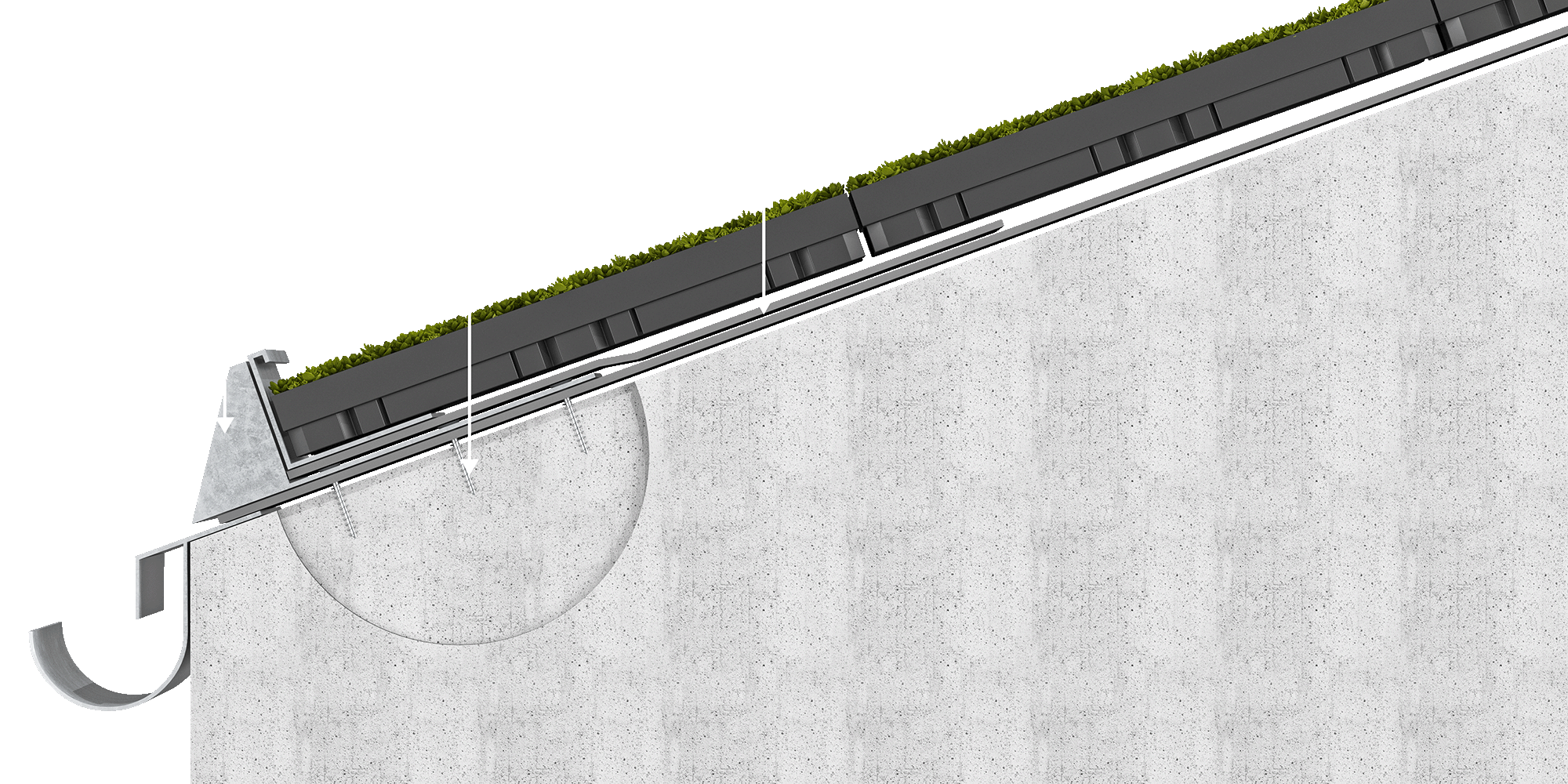

Pitched roof

Grafische setiliche Darstellung der Position von ECOgreen PACK auf einem Schrägdach

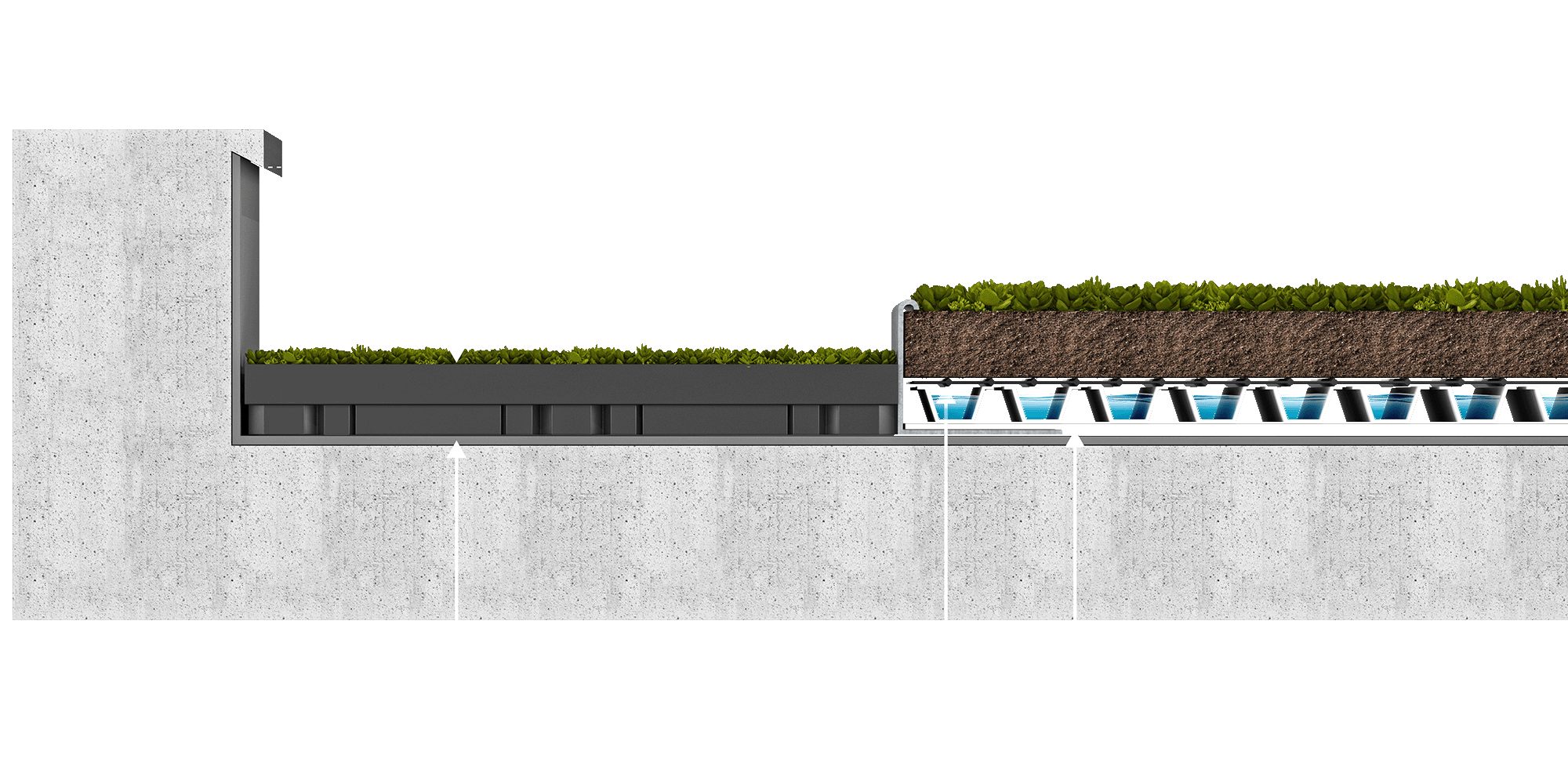

Combination

Grafische seitliche Darstellung

The choice is yours!

Choose the optimum ECOgreen PACK solution for your project

LIGHT

Our lightweight for special requirements.



The ECOgreen® PACK light is ideal for buildings with reduced load-bearing capacity or weaker statics. Lower weight and less water retention per square meter reduce the load acting on the building. Simple and sustainable green roofs without compromises.

  • 25 l / m²
  • 60 kg / m² *

*at max. water level

ECOgreen LIGHT request

CLASSIC

Our tried and tested complete system.



Our ECOgreen® PACK CLASSIC modules are suitable for buildings with compliant statics. Rain retention volume and weight are optimally designed for good installation and against waterlogging. The ECOgreen® PACK CLASSIC is wind-resistant in accordance with CSTB test report EN CAPE 18.079C-V2.

  • 36 l / m²
  • 95 kg / m² *

*at max. water level

ECOgreen CLASSIC request

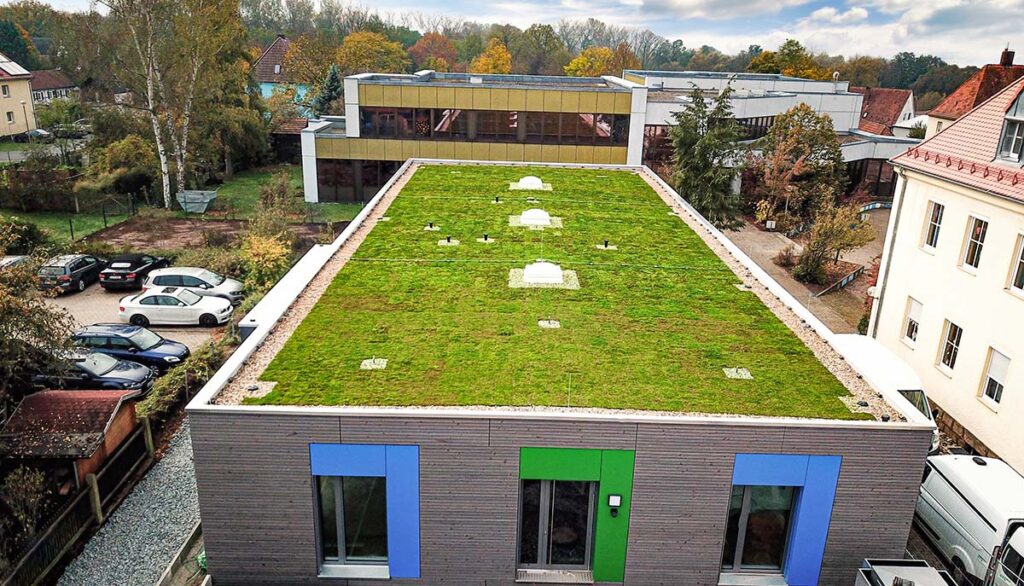

Dachbegrünung ECOgreen PACK auf einer Kita in Mainleus umgeben von Häusern und parkenden Autos

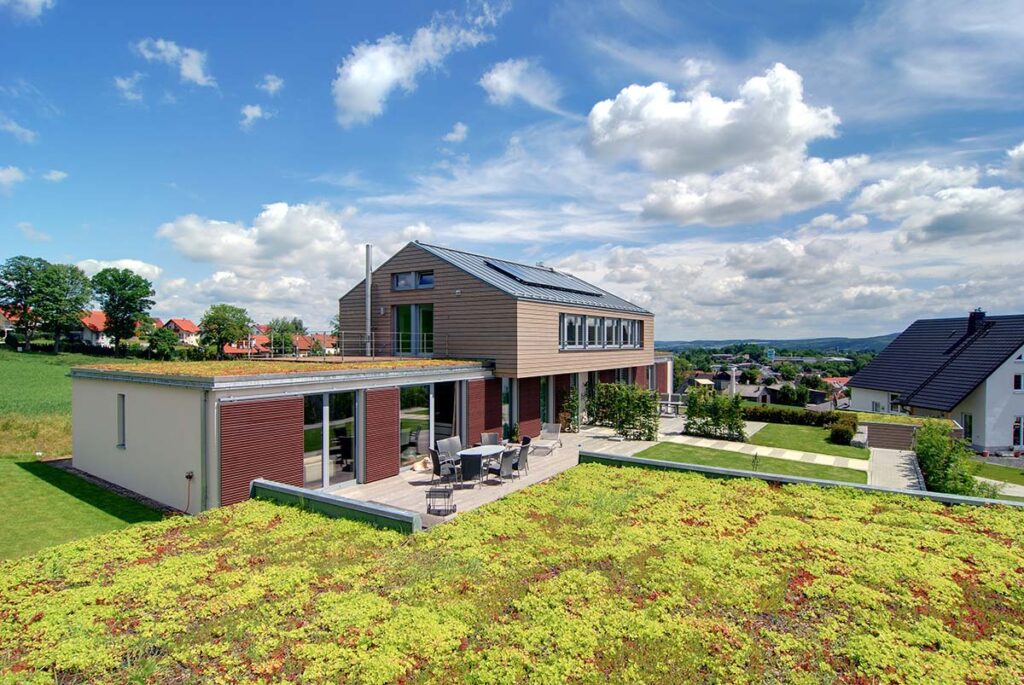

Dachbegrünung ECOgreen PACK auf einem privaten Hausdach mit Wohngebiet im Hintergrund

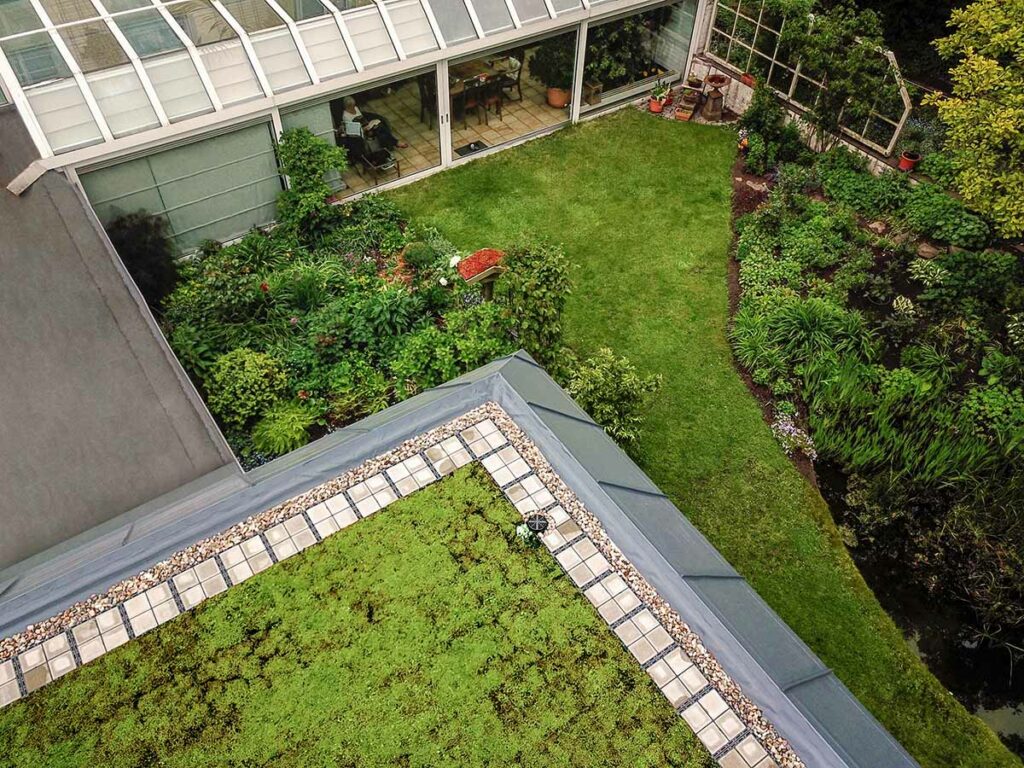

Dachbegrünung mit BLOXX Umrandung und Blick auf den Garten
ECOgreen Dachbegrünung mit Blick auf ein Gebäude und Wald im Hintergrund

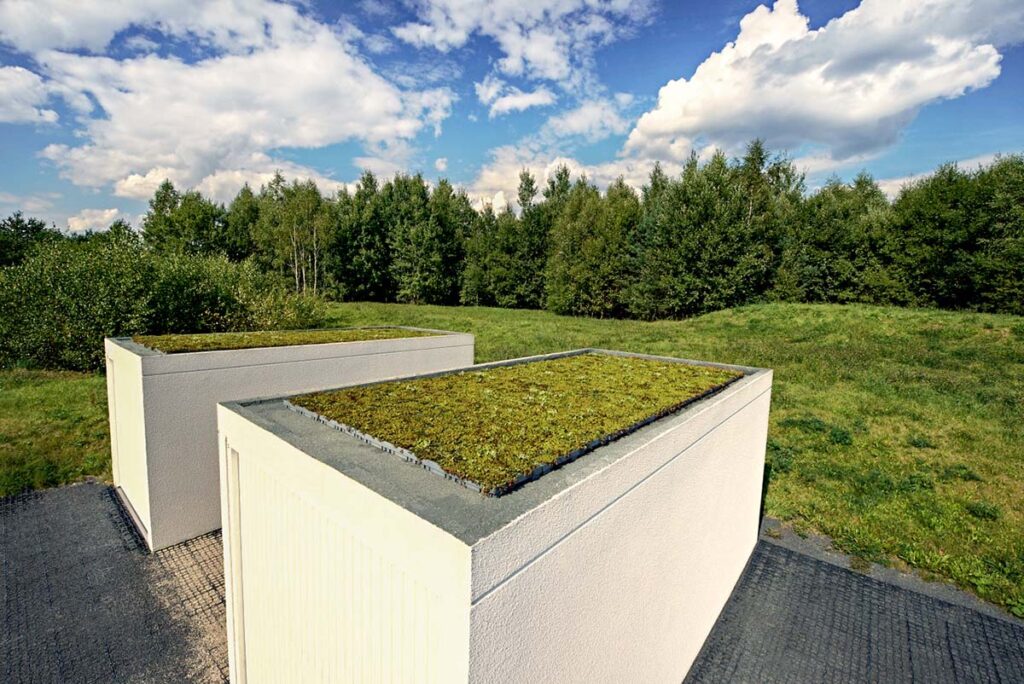

Dachbegrünung ECOgreen PACK auf zwei weißen privaten Garagen mit Wiese und Wald im Hintergrund

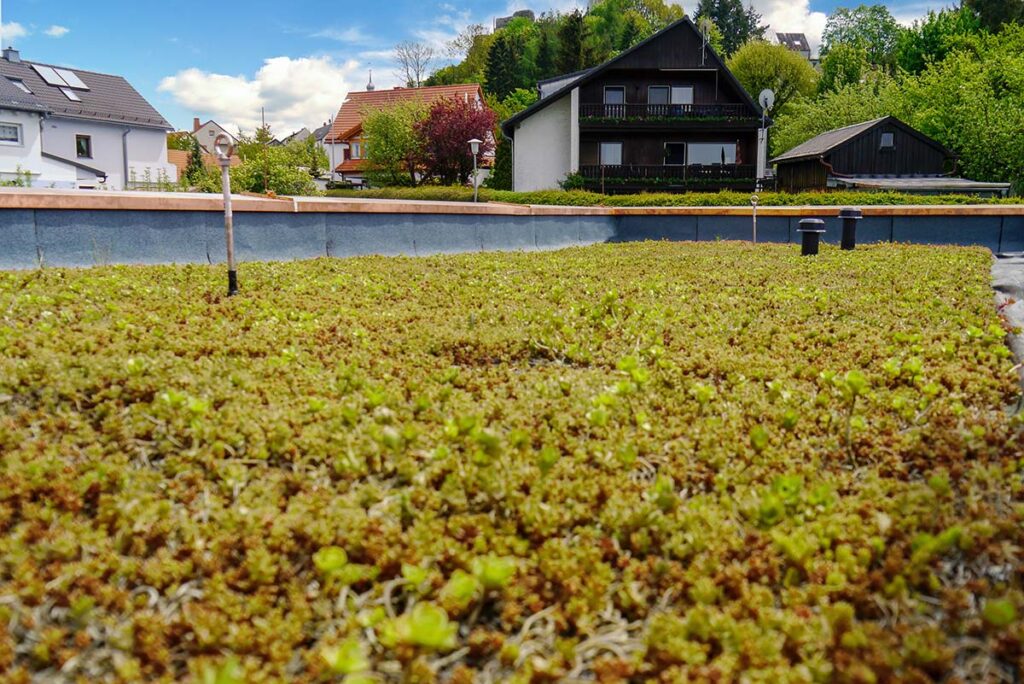

Nahaufnahme der ECOgreen PACK Bepflanzung mit Wohnhäusern im Hintergrund

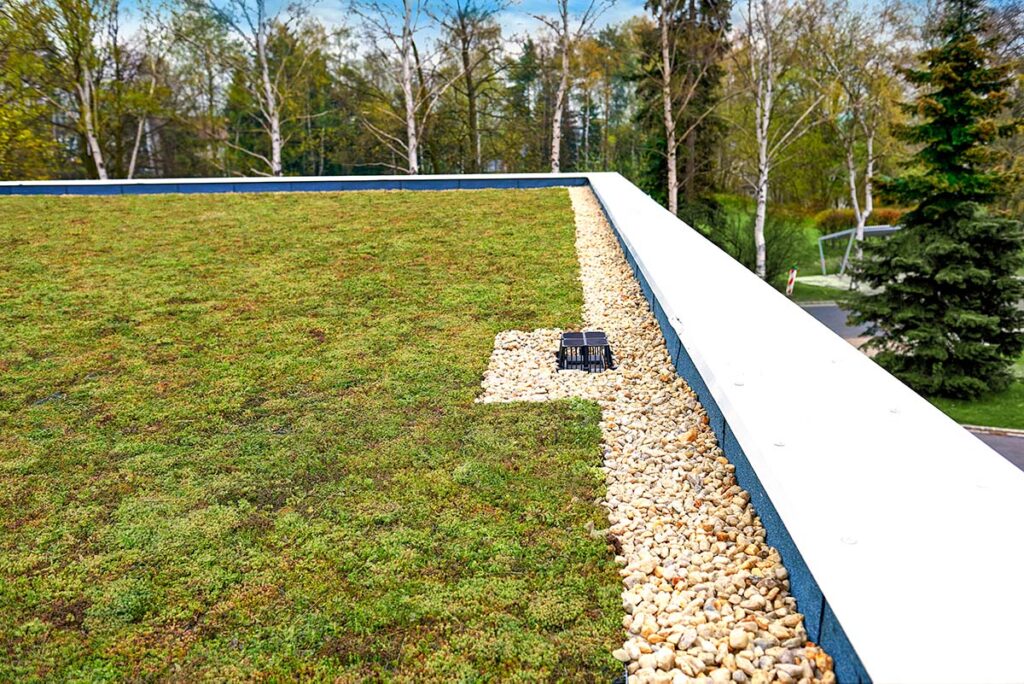

Dachbegrünung von PURUS mit Steinumrandung und Wald im Hintergrund
Blick von oben auf einen Ausschnitt der ECOgreen PACK Dachbegrünung der Kita Mainleus

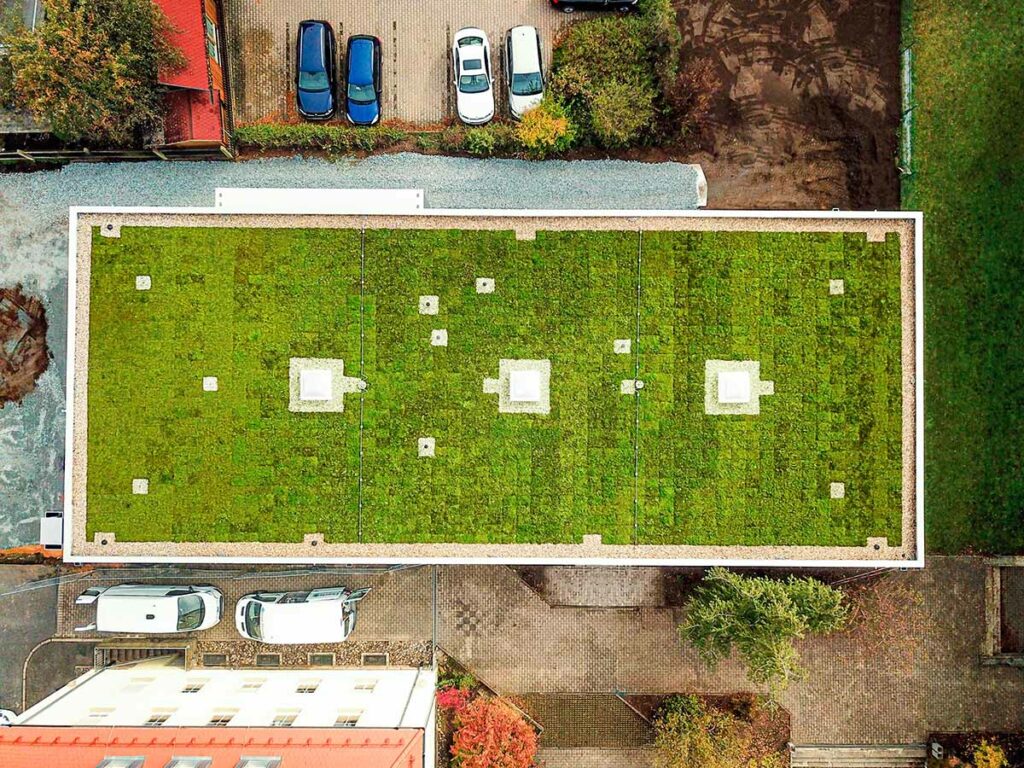

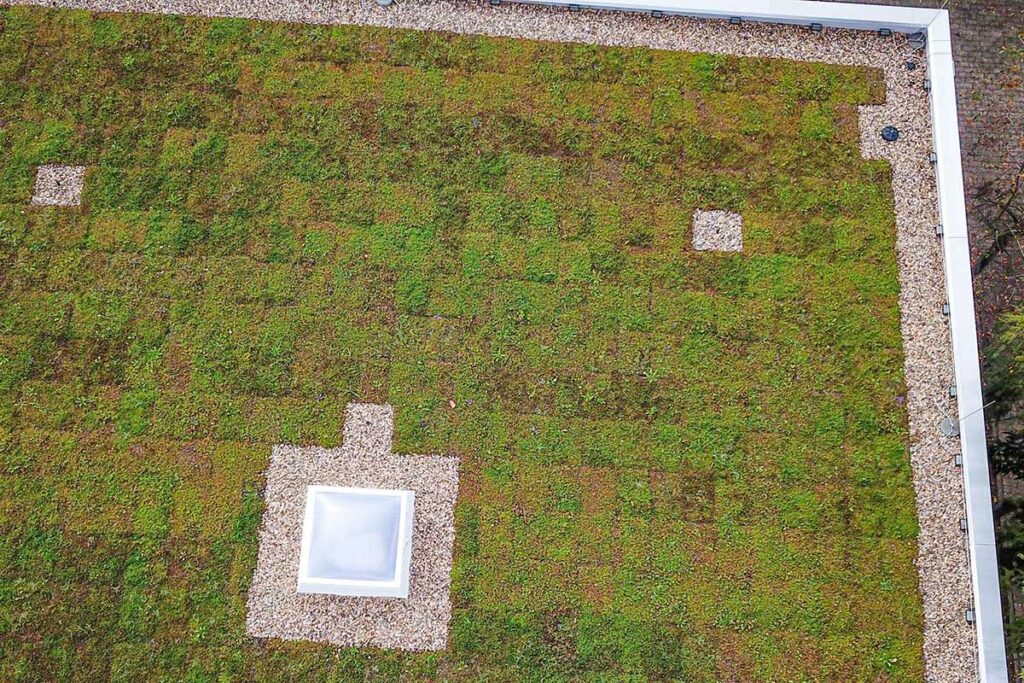

Blick von oben auf die ECOgreen PACK Dachbegrünung der Kita Mainleus

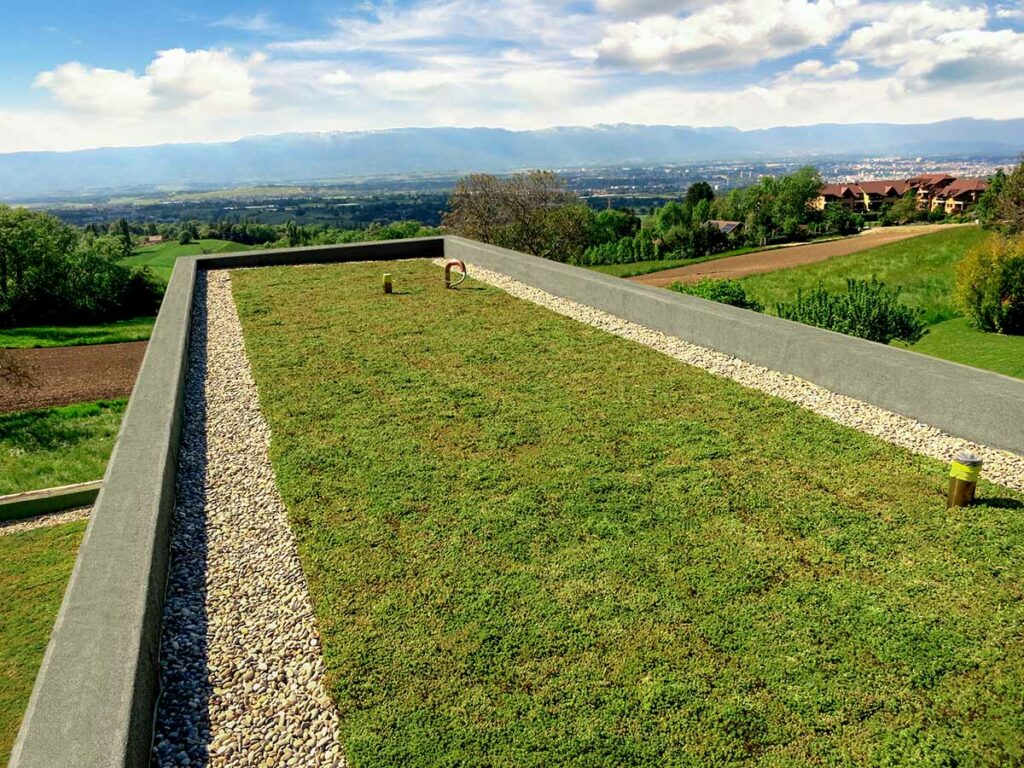

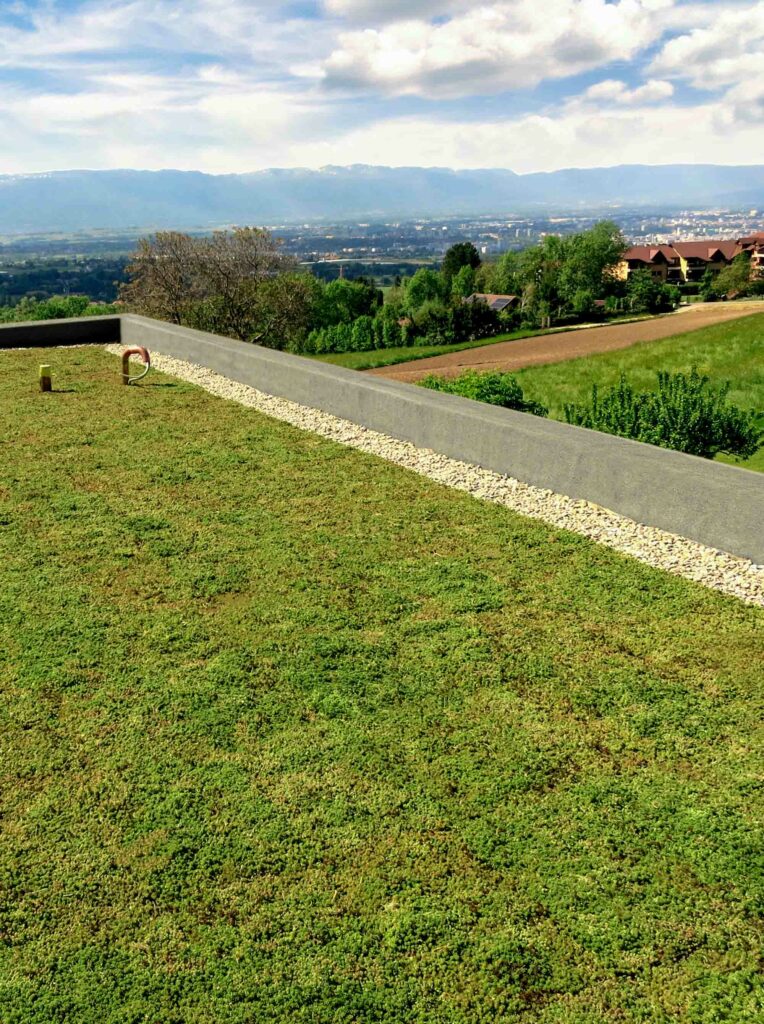

Dachbegrünung ECOgreen PACK auf Colonges Maison mit Blick in die umliegende Landschaft

Let’s talk about your project

The quick way to your green roof.

Do you have any questions or are you interested in a green roof? We will be happy to advise you – together we can create a sustainable future!

Jan Wölfel
Sales ECOgreen®

Tel: +49 (0)9233 7755 762
Mobile: +49 (0)170 330 18 90
Fax: +49 (0)9233 7755 50
j-woelfel@purus-plastics.de

Notes

Please think about your safety… and that of other people:
Wear your PPE and the protective clothing required for the work (gloves, safety goggles, safety shoes, etc.) when working on the roof.

To ensure the success of your green roof, please observe the following instructions:

Clean the roof surface with a broom, measure the laying area and sketch the laying plan with a 60 cm x 40 cm grid.

The roof waterproofing and root protection must be carried out in accordance with FLL. If the existing roof waterproofing contains bitumen, a barrier fleece must be applied before installation.

ECOgreen® PACK must be laid within 48 hours of delivery. If this deadline cannot be met, the goods must be unpacked, stored flat and watered to prevent damage to the plants. If necessary, cut the modules using a circular saw, angle grinder or similar. Make sure you have a suitable base. Please remember your personal fall protection equipment (to be worn in accordance with the PPE usage regulations). If the edge modules have to be cut, ensure that they are immediately adjacent to gravel, for example. After laying, water the finished surface with 5 – 10 liters / m2. Rainwater drainage must be ensured at all times. Appropriate technical precautions must be taken for this purpose. In the area of drains, an area of 400 mm around the drain must be left out and filled with gravel.

The structure of the building on which the ECOgreen® PACK is installed must be permanently designed for an additional load in accordance with the maximum water retention. In case of doubt, please contact an architect or structural engineer for a static recalculation of your supporting structure. The maximum pitch of the roof surface must not exceed 35 %. For greater inclinations, a case-by-case assessment is necessary. Access to the roof must be secured for annual maintenance. Taking into account the required pressure, a water supply should be provided on the roof. With a slope of up to 20 % and ECOgreen® PACK modules installed less than 10 m behind each other, no additional shear protection is required apart from the gravel stop.

Irrigation is required in the event of prolonged drought. The roof must be inspected at least once a year. Please remember your personal fall protection equipment (to be worn in accordance with the PPE usage regulations). This involves removing unwanted vegetation, checking the drainage and, if necessary, removing unwanted vegetation from the gravel strip.

Green roofs offer many advantages for people and the environment.

Green roofs are part of a modern appearance and offer nature new spaces in our predominantly gray cities. A green roof not only enhances the appearance of the property! In fact, a green roof offers numerous ecological and economic advantages:

  • A green roof provides effective heat protection in summer. The evaporation of the collected water ensures noticeable cooling and sufficient humidity. In addition, the plant cover does not heat up nearly as much as a surface covered with gravel or bitumen. Protecting the roof from intensive UV exposure increases its service life.
  • A green roof has an insulating effect and helps the building to reduce heat loss through the roof. This saves energy costs.
  • A green roof absorbs sound. Less noise can penetrate the building. A significant increase in the quality of life and work.
  • Green spaces are able to purify the air. In urbanized areas, these areas relieve the burden on people and reduce exposure to pollutants and particulate matter.
  • A modern green roof also has the task of storing precipitation to a certain extent. Excess rainfall is buffered and fed into the drainage system at a reduced rate. This relieves the drainage system and reduces the factors for flooding.
  • Depending on the region, there are state subsidies and crediting options, including lower precipitation fees.
more about the sponge city

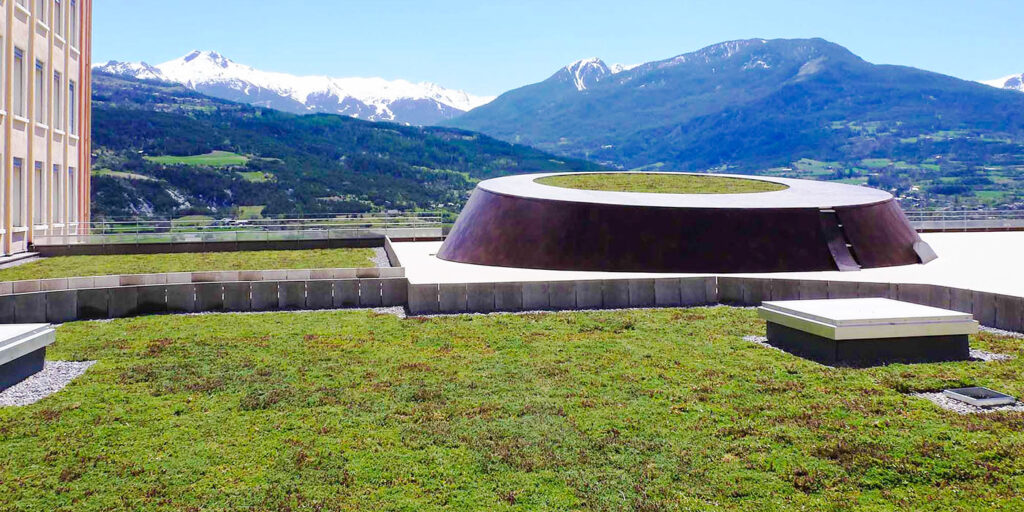

ECOgreen PACK Dachbegrünung auf dem schweizer Hopital Embrun mit Bergpanorama im Hintergrund
