ECORASTER substructure - preparation for optimum stability

The correct base for your ECORASTER System.

Follow these recommendations to obtain the best possible results.

The condition of the substructure and its water permeability are the basis for a functioning floor system. Depending on the filling, load, and application, different types of ground reinforcement grids with different base layers are suitable for your project. Thanks to our more than 25 years of experience in the construction of unsealed surfaces, we recommend the following types of substructures for ECORASTER installation. Good preparation ensures optimum stability. Please note that the design and any deviations should always be based on the applicable RStO (German Road Construction Regulations).

To the ECORASTER product overview

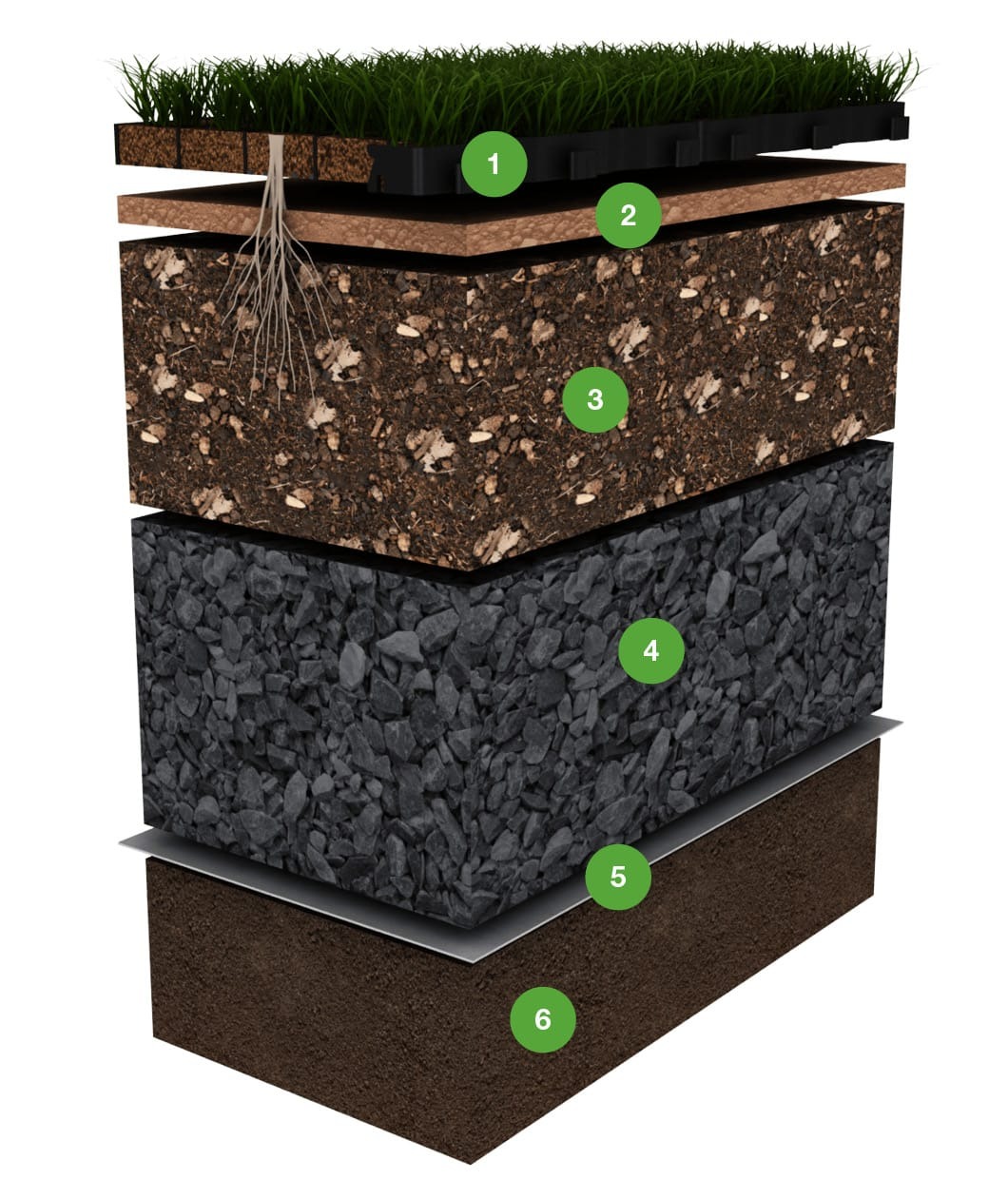

Recommendation for ECORASTER Green – the green solution

Grafische Darstellungs des Aufbaus eines beispielhaften Unterbaus für ECORASTER Green

1
ECORASTER – Fill material:
Pre-greened: Install ECORASTER Green, use lawn roller to press on
DIY greened: SEMILIT (alt. mix 30 % gravel + 70 % humus + long-time fertilizer), elutriate seeding material

2
Base layer – levelling course: FERTILIT
(alt.: mix quartz sand, gravel, humus + long-term fertilizer); Approx. 4 cm | 1.6″ levelled, compact with roller to 3 cm | 1.2″. Water compacted area before installing ECORASTER

3
Fertile layer – Intermediate: HYDROFERTIL
(mix with 65-70 % gravel 30/60)
(alt.: mix 30-35 % humus and 65-70 % gravel 30/60 | 1.2/2.4″)
Height approx. 10 – 40 cm | 4-16″

4
Draining layer – Drainage layer; Gravel
(e. g. 30/60 – 40/80 mm) | 1.2/2.4″ – 1.6/3″);
Height approx. 10-40 cm | 4-16″, plate tamp or roll to compact

5
Pollutant barrier geotextile

6
Floor/level
Level and plane with 1-1,5 % slope

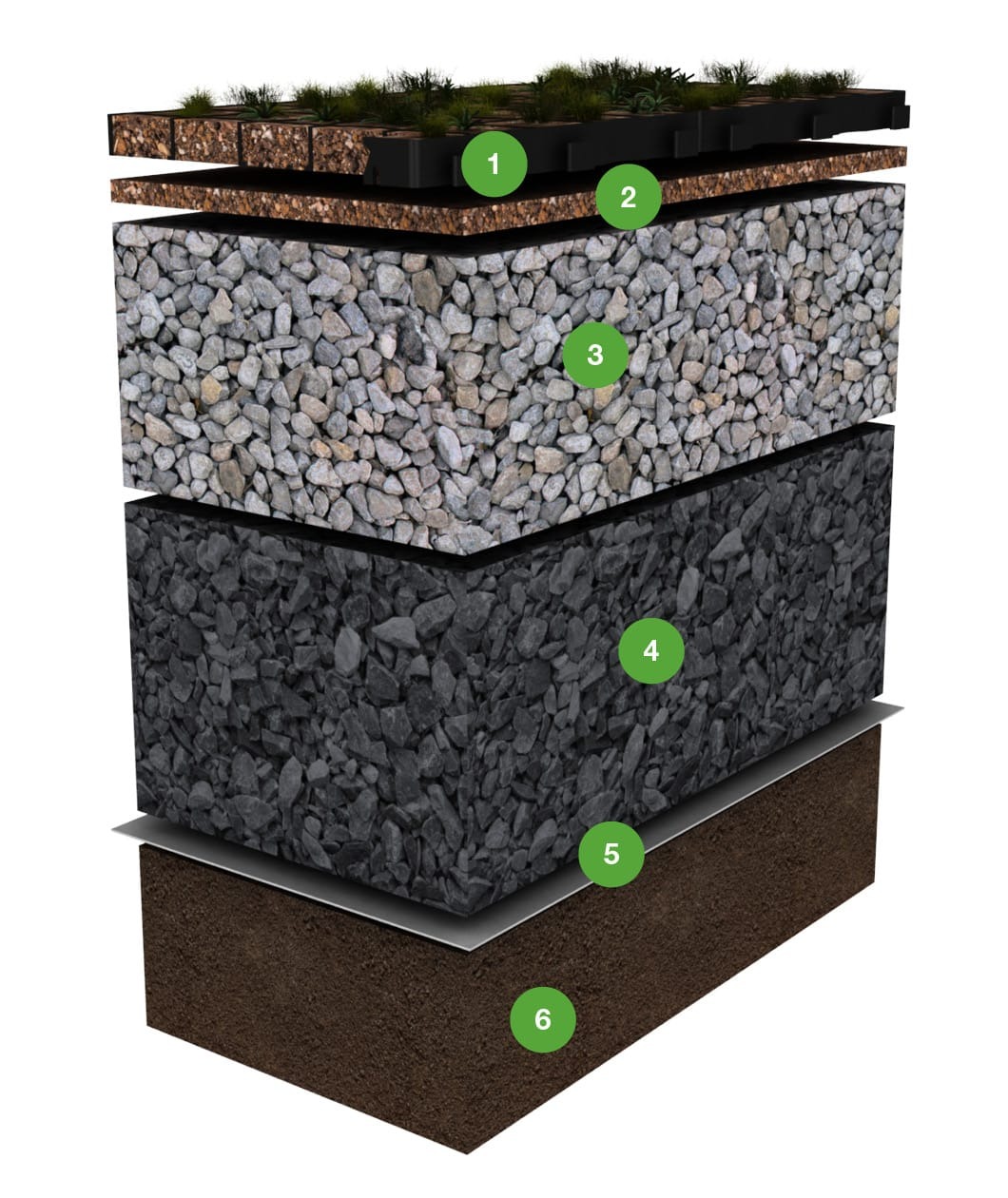

Recommendation for ECORASTER Microgreen – the solution with strong sedum

Grafische Darstellungs des Aufbaus eines beispielhaften Unterbaus für ECORASTER Microgreen

1
ECORASTER – Fill material:
Fill with mineral substrate, sow seeds (mix of sand-thyme, mosses, sedum, mountain sweet grass, white clover).

2
Base layer
Levelling course, mineral substrate (3/15, Microgreen-substrate);
Approx. 4 cm | 1.6″ levelled, then compact with roller to approx 3 cm | 1.2″

3
Draining layer – Drainage layer
20 cm | 8″ clear angular gravel (0/32);
Fill with gravel and compact.

4
Substructure – 10-45 cm gravel
(e. g. 30/60 or 40/80 mm or 1.2/2.4″ or 1.6/3″)
For cars approx. 25 cm | 10 “; trucks approx. 40 cm | 16

5
Pollutant barrier geotextile

6
Floor/level
Level and plane with 1-1,5 % slope

Recommendation for ECORASTER Mineral – the solution with stone chips/gravel filling

Grafische Darstellungs des Aufbaus eines beispielhaften Unterbaus für ECORASTER X30

1
ECORASTER – Fill material:
Fill with gravel/ loose gravel/ sand (with proper grain size, no fines)

2
Base Layer – levelling course
gravel (2/5 mm);
Approx. 4-5 cm | 1.6-2″ levelled, then install ECORASTER and plate tamp or roll to compact.

3
Draining layer – Drainage layer
20 cm | 8″ clear angular gravel (0/32);
Fill with gravel and compact.

4
Substructure – 10 – 45 cm | 4-18″ gravel
(e. g. 30/60 or 40/80 mm | 1.2/2.4″ or 1.6/3″);
For cars approx. 25 cm | 10″; trucks approx. 40 cm | 16″

5
Pollutant barrier geotextile

6
Floor/level

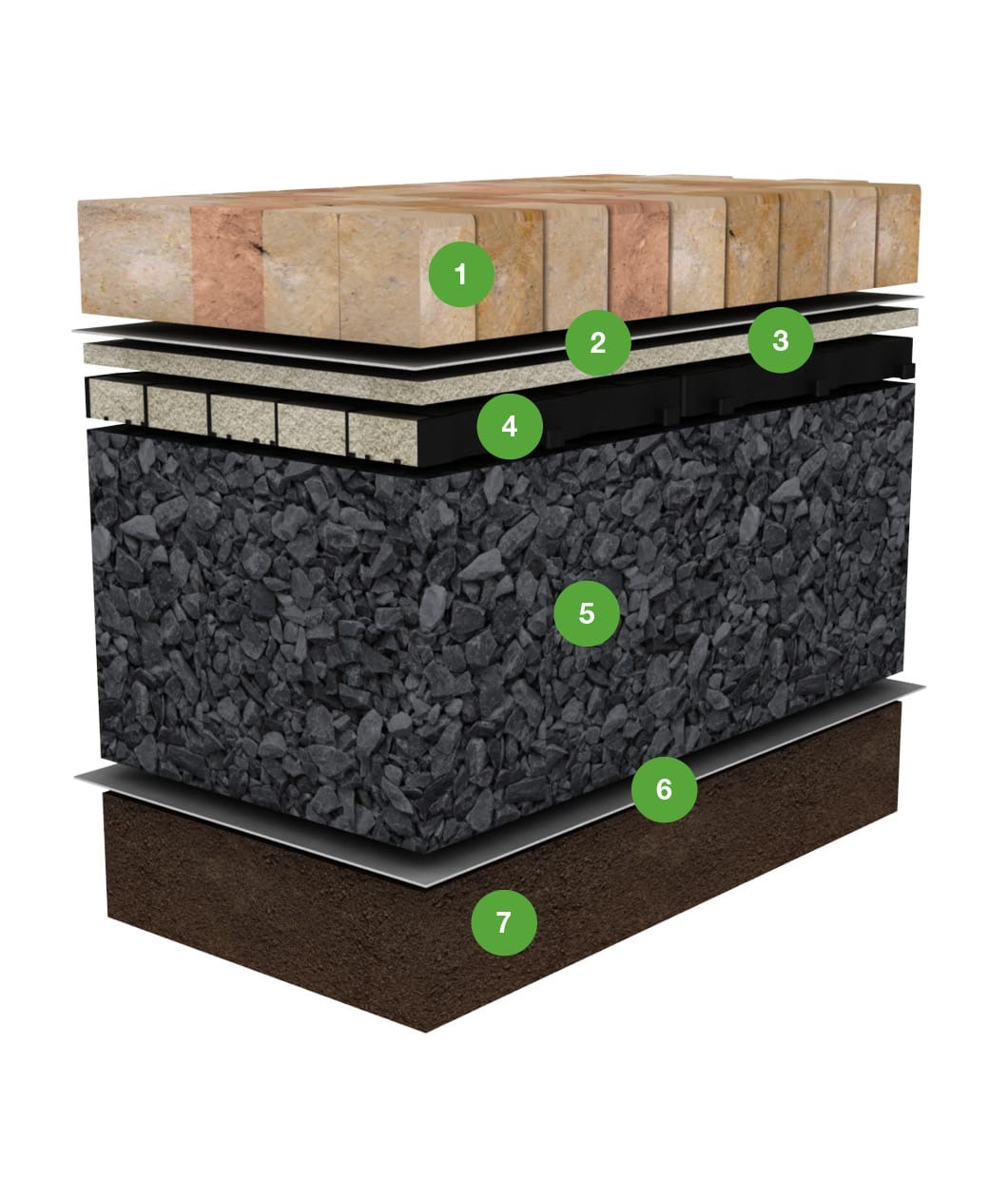

Recommendation for ECORASTER X30 – the solution for base layers

Grafische Darstellungs des Aufbaus eines beispielhaften Unterbaus für das ECORASTER X30

1
Paver

2
Filter Cloth Wrapped Excavation

3
Base layer – levelling course
approx. 3 cm | 1.18″ crushed sand

4
ECORASTER X30

5
Draining layer – Drainage layer
25 cm | 9.8″ clear angular gravel / frost protection (e. g. 30/60 or 40/80);
Fill with gravel and compact.

6
Pollutant barrier geotextile

7
Floor/level
Level and plane with 1-1.5 % slope

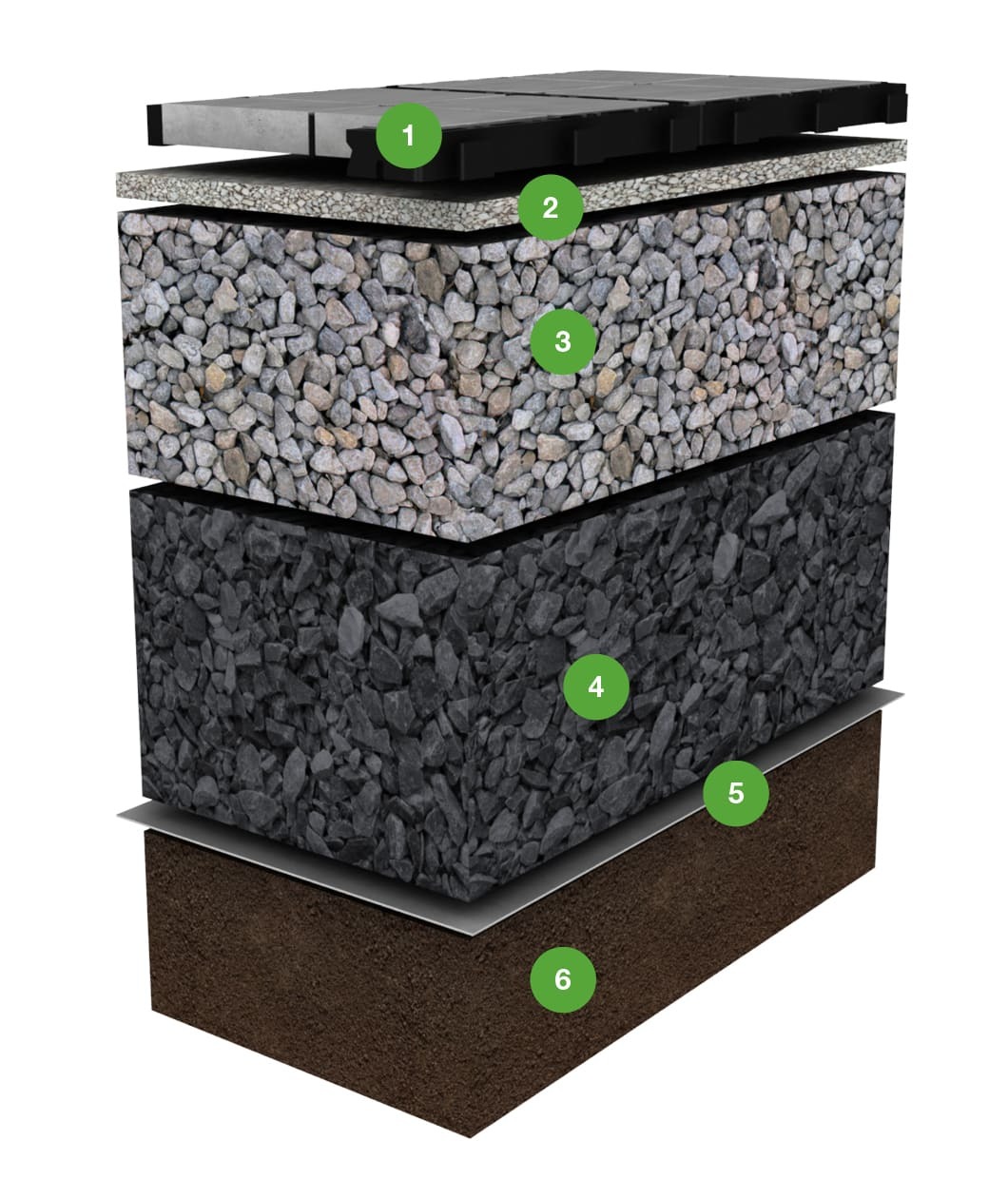

Recommendation for ECORASTER Bloxx – the solution for paving-like permeable surfaces

Grafische Darstellungs des Aufbaus eines beispielhaften Unterbaus für das ECORASTER Bloxx System

1
ECORASTER – Bloxx
Filling with paving stones, settle area with plate compactor (rubber mat). 142*142*45 mm (each paver); Dark grey, light, red, white

2
Base layer – Levelling course
(2/5 chip or 3/7); NO round shaped gravel
approx. 3 cm | 1.18″ levelled.

3
Draining layer – Drainage layer
20 cm | 8″ clear angular gravel (0/32);
Fill with gravel and compact.

4
Substructure – 10 – 45 cm | 4-18″ gravel
(e. g. 30/60 or 40/80 mm | 1.2/2.4″ or 1.6/3″);
For cars approx. 25 cm | 10″; trucks approx. 40 cm | 16″

5
Pollutant barrier geotextile

6
Floor/level
Level and plane with 1-1.5 % slope
