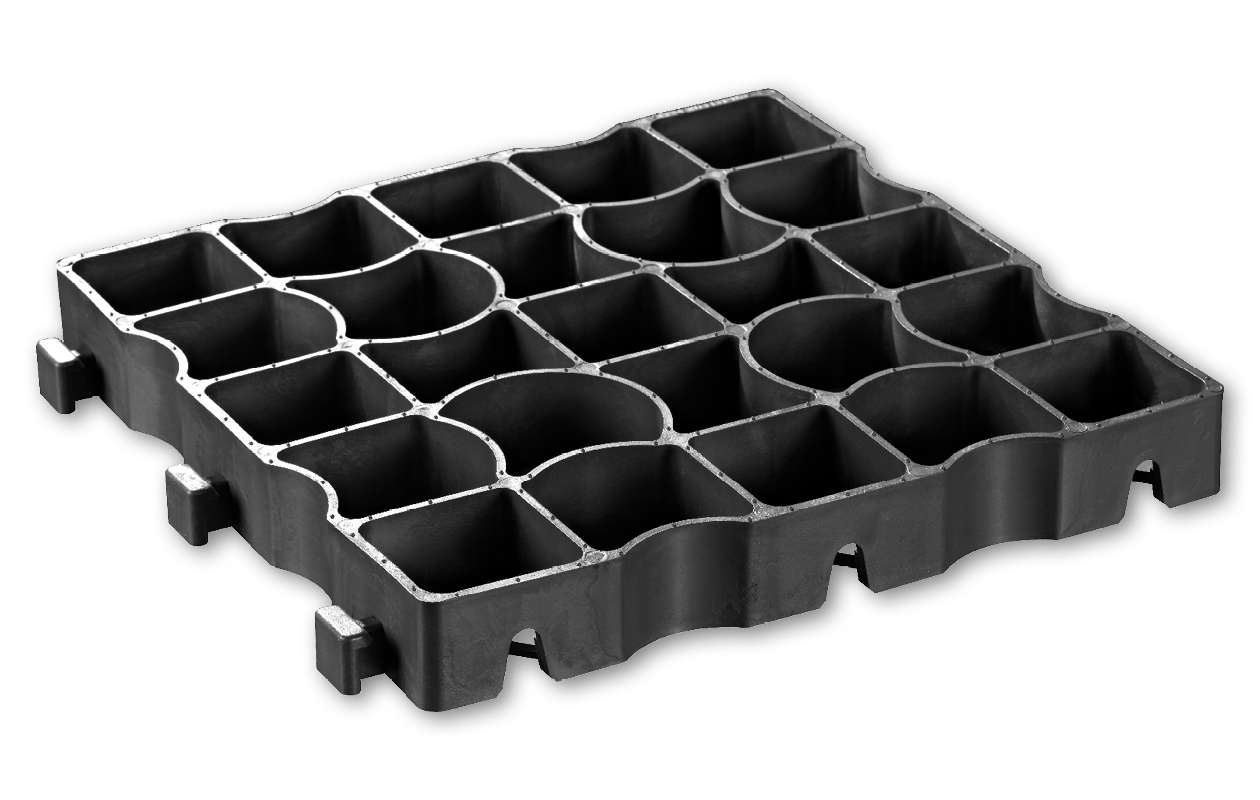

ECORASTER E40 – the permeable all-round ground reinforcement system.

Suitable for almost all civil engineering, gardening and landscape applications.

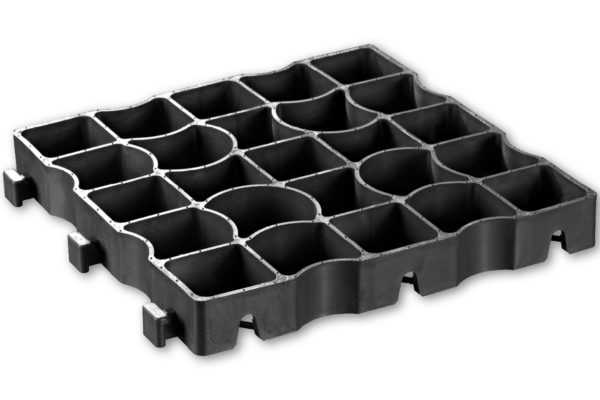

Freigestellte Darstellung eines ECORASTER E40

Product description

Often referred to as the “all-rounder” among ground reinforcement systems, the ECORASTER E40 is particularly suited for car parking areas or home and garden and campsite use. ECORASTER E40 elements are 4 cm high and are the perfect choice for a variety of projects – whether planted or filled with gravel.

Technical Specification

  • Dimensions: 33,3 x 33,3 x 4 cm | 12.99 x 12.99 x 1.57 “
  • Wall thickness: up to 3.6 mm | 0.14 “
  • Weight per piece: 0.66 kg
  • Weight per m²: 5.94 kg
  • Material: LD-PE, recycled
  • Area per pallet: ≈ 74,67 m²
your 360 images

Downloads

Regularly tested and verified

Siegel für den Nachweis der NATO Zertifizierung
RAL Gütezeichen für Bodengitter aus Recycling Kunststoffen
TÜV Nord Prüfsiegel in blau-weißen Farben zur Achslast und Umweltneutralität.
Prüfsiegel der TÜV Nord in schwarz-weiß

ECORASTER Bloxx is protected by the German utility model 202014106285[CNS1] [CNS1], the Polish utility model W.124709; US patent 10094073, EP patent 3237682. There are further industrial property rights and applications for industrial property rights outside Europe.
