ECORASTER E40 aqua – the ground grid element for areas with integrated irrigation.

Save effort and water with the E40 aqua.

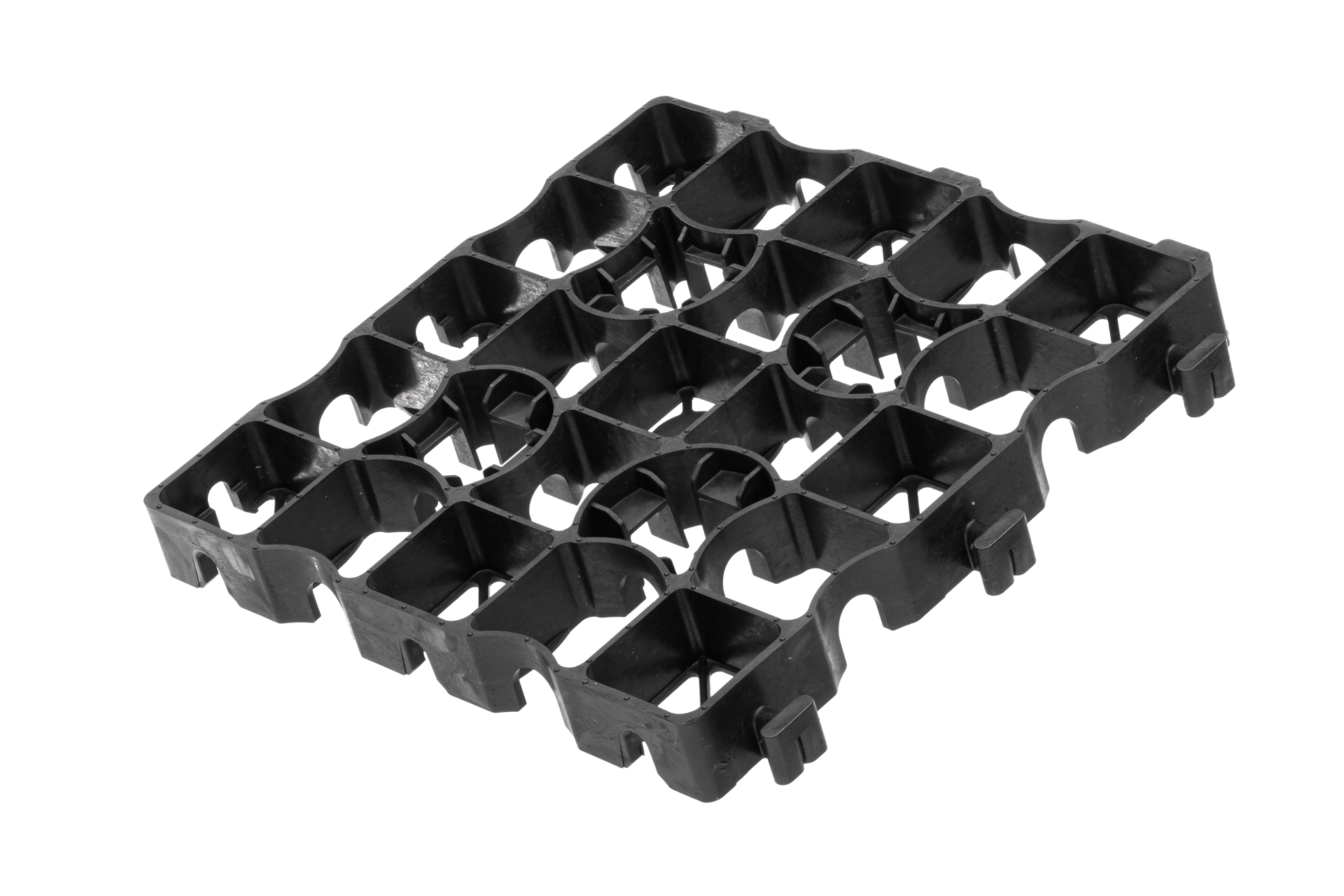

Freigestellte Darstellung eines ECORASTER E40 XXL

Product description

Green areas, whether with grass or sedum varieties, should be watered regularly. Surface sprinklers are often used, but these are increasingly being criticized because much of the water used evaporates unnecessarily.

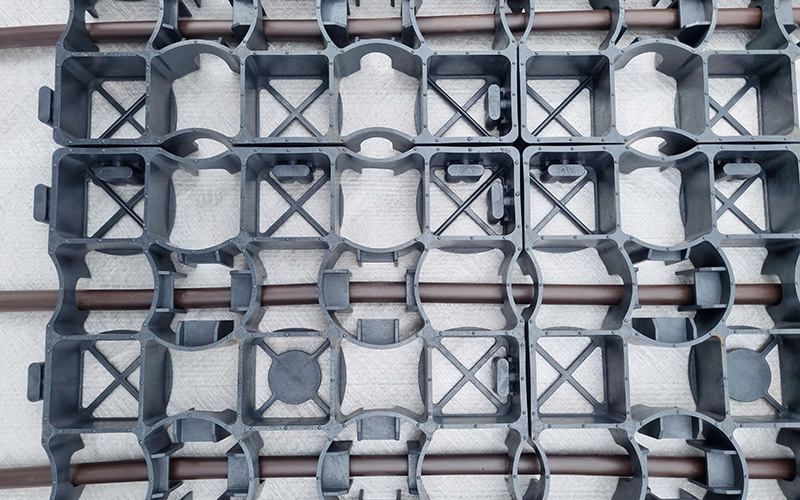

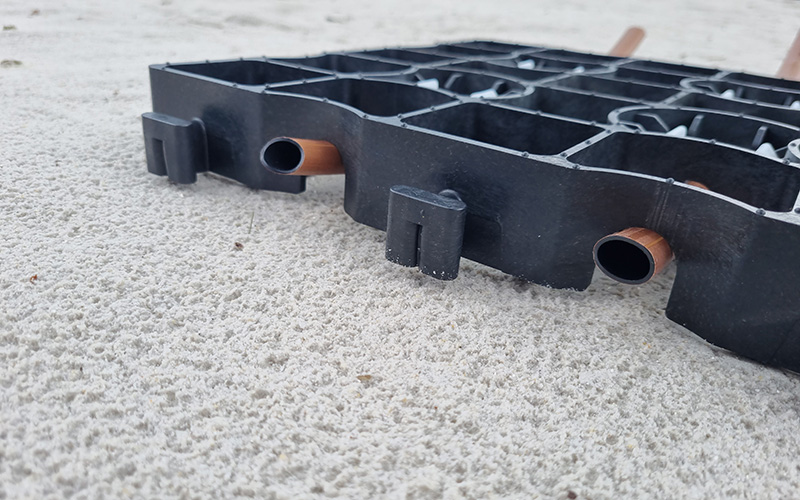

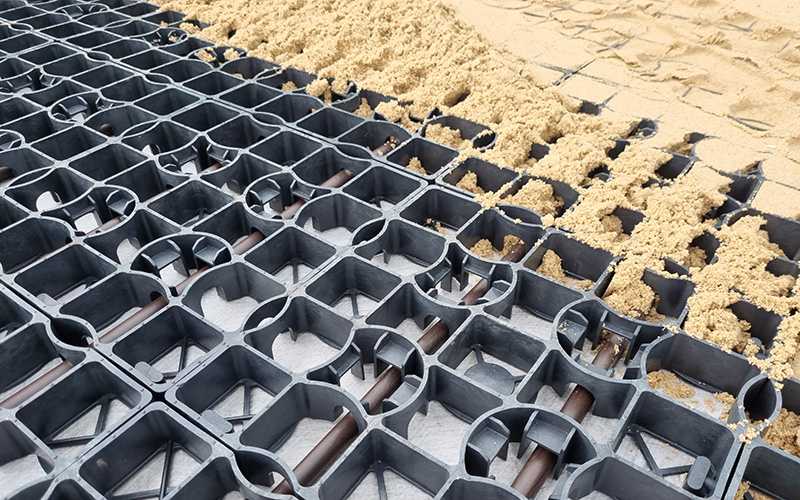

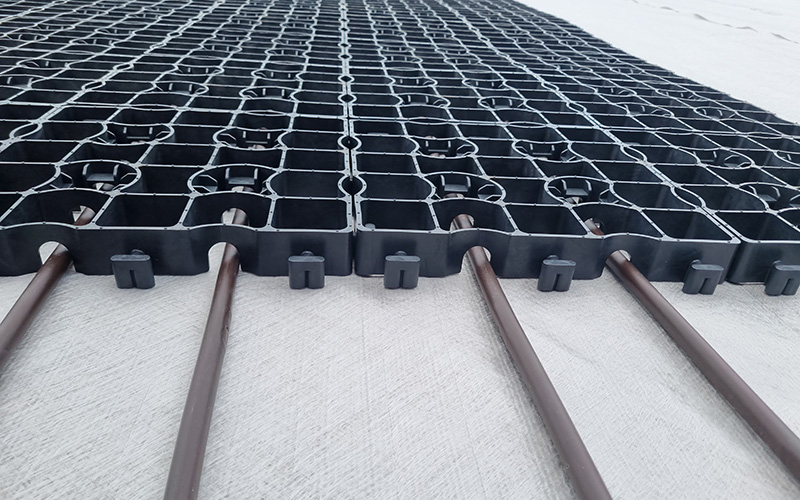

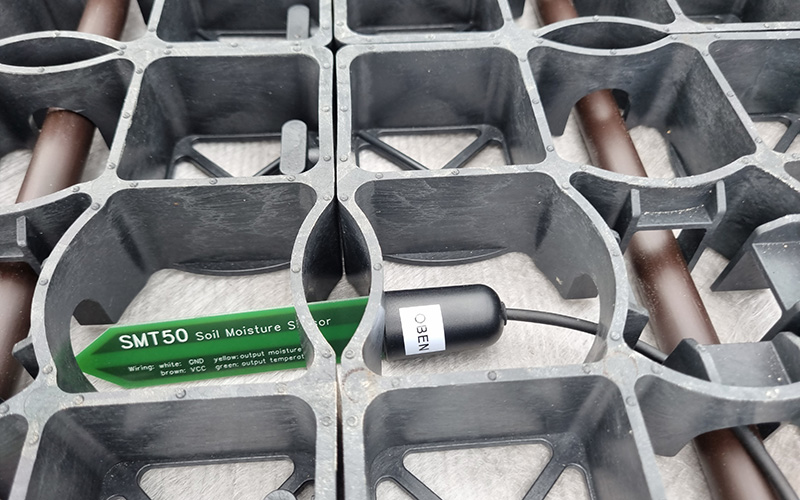

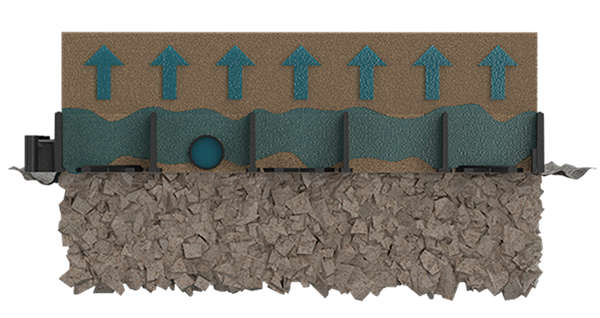

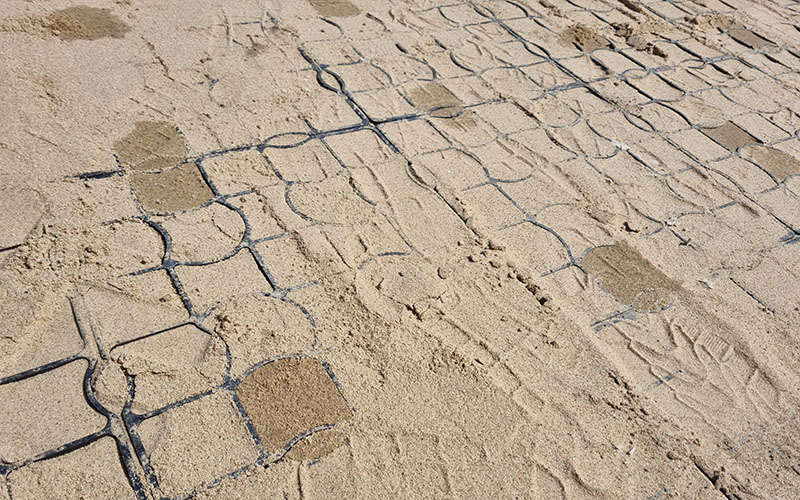

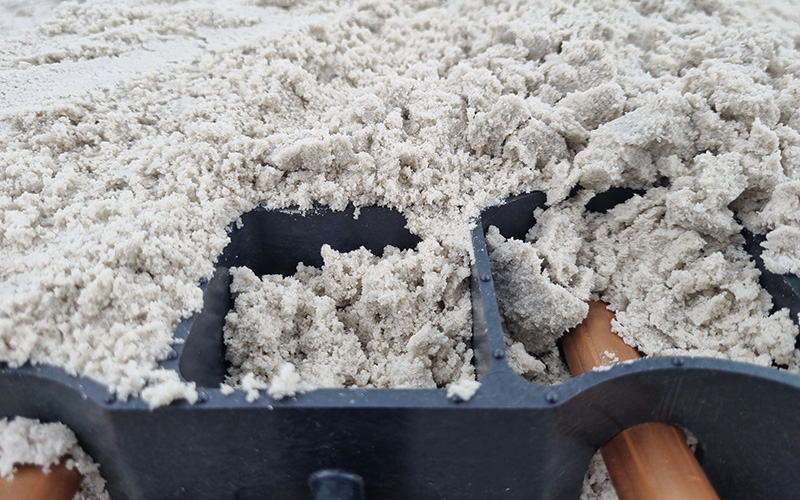

With the new ECORASTER® E40 aqua, you can combine the advantages of permeable ground reinforcement with the benefits of subsurface irrigation. While rain can seep away where it falls, you get a stable surface without puddles or ruts. In hot periods, the fact that the surface is unsealed prevents heat island effects. On campsites, for example, guests can use the pitch without getting wet themselves when watering. There is also no need to set up sprinklers or hoses by hand, saving time and up to 40% water. If desired, the watering of the areas can be controlled manually or using moisture sensors and an app. The choice is yours: as a complete system with the know-how of us and our experienced irrigation partner or for the installation of your own pipes.

Thanks to the individual design, shady areas or very sunny areas can be watered differently from each other.

Technical Specification

  • Dimensions: 333 x 333 x 40 mm
  • Wall thickness: up to 3.6 mm | 0.14 “
  • Weight per m²: 6.93 kg
  • Weight per piece: 0.77 kg
  • Form stability: Temperature range from -50° to +90° C
  • Moisture absorption: 0,01 %
  • Material: LD-PE, recycled
  • Load capacity: up to 800 per square meter (depending on filling)
  • Compressive strength: up to 20t axle load according to DIN 1072
  • Environmental sustainability: Environmentally neutral tested according to OECD 202:2004
  • Area per pallet: ≈ 74,67 m2
  • Dimensions: 105 x135 x 246 cm
  • Weight: approx. 445 kg (incl. load carrier and packaging)
your 360 images

Downloads

Regularly tested and verified

Siegel für den Nachweis der NATO Zertifizierung
RAL Gütezeichen für Bodengitter aus Recycling Kunststoffen
TÜV Nord Prüfsiegel in blau-weißen Farben zur Achslast und Umweltneutralität.
Prüfsiegel der TÜV Nord in schwarz-weiß

ECORASTER Bloxx is protected by the German utility model 202014106285[CNS1] [CNS1], the Polish utility model W.124709; US patent 10094073, EP patent 3237682. There are further industrial property rights and applications for industrial property rights outside Europe.
