ECORASTER E80 – the floor grating for heavy-duty applications.

Product description

The new E80 heavy is designed for consistent use in “heavy-load & heavy-traffic” areas. Loading, maneuvering or turning on the spot are maximum loads that the E80 can handle powerfully. Regardless of the structure or type of load, the heavy creates seal-free logistics areas.

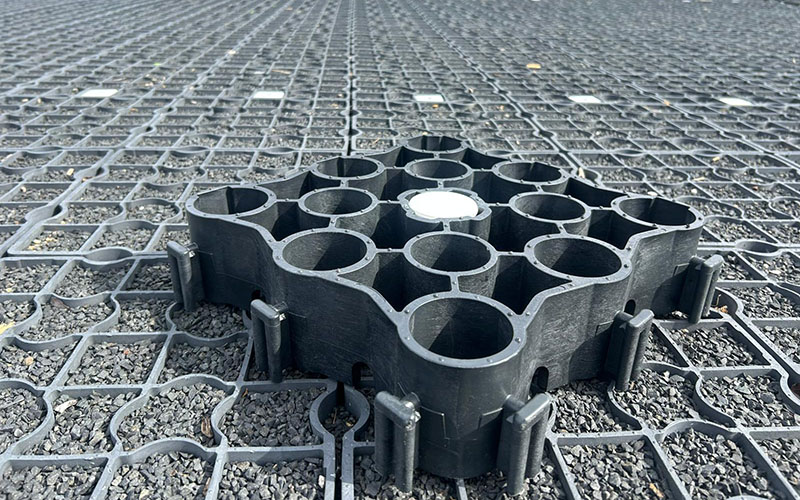

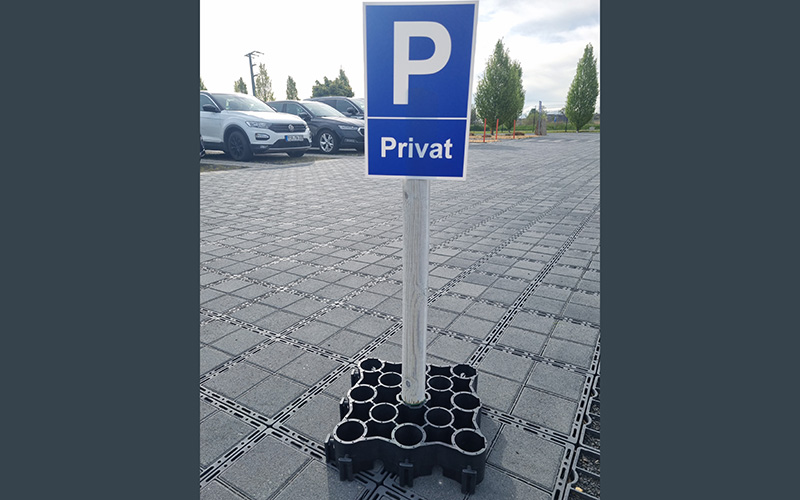

E80 heavy is the sophisticated ground grid power[1]house: thanks to the integrated 4-way channel, you can easily run pipes or irrigation systems under the surface. The centrally installed bayonet lock allows you to attach different adapters. Posts, fences or other partitions can be easily installed and removed.

• Dimensions: ≈ 33,3 x 33,3 x 8 cm
• Wall thickness: ≈ above 5 mm / ≈ bottom 7,4 to 7,9 mm
• Weight per m²: ≈ 18,5 kg
• Weight per piece: ≈ 2,02 kg
• Form stability: Temperature range from -50° to +90° C
