ECORASTER TR40 – the ground reinforcement element with integrated water storage capability.

More surface area and less maintenance thanks to an innovative design.

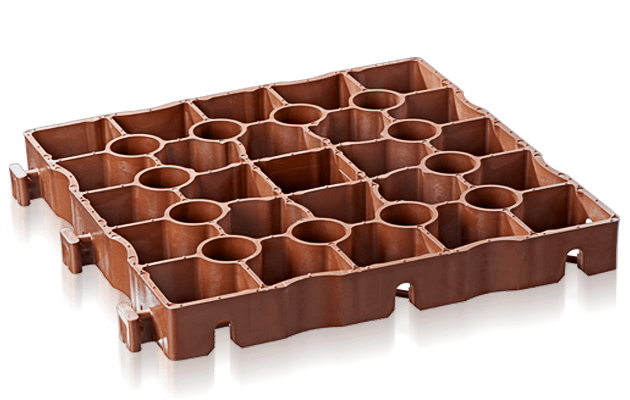

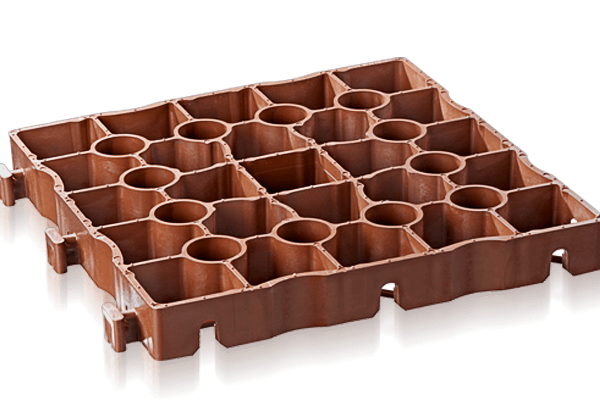

Freigestellte Darstellung eines ECORASTER TR40

Product description

The ECORASTER TR40 transforms equestrian arenas into high-performance grounds. The customary ECORASTER quality ensures best possible training conditions, while the integrated water storage noticeably reduces maintenance requirements. The integrated water-storage cells collect water and gradually dispense it to the wear layer during dry periods. Thus, an equestrian arena measuring 800 m2 may store up to 4,000 liters of water. Thanks to its intelligent design, the TR40 sets the standard in terms of performance, safety and durability.

Technical Specification

  • Dimensions: 33,3 x 33,3 x 4 cm | 12.99 x 12.99 x 1.57 “
  • Wall thickness: up to 4,0 mm | 0.16 “
  • Weight per piece: 0.82 kg
  • Weight per m²: 7.38 kg
  • Material: LD-PE, recycled
  • Area per pallet: ≈ 74,67 m²
your 360 images

Downloads

Regularly tested and certified

Siegel für den Nachweis der NATO Zertifizierung
RAL Gütezeichen für Bodengitter aus Recycling Kunststoffen
TÜV Nord Prüfsiegel in blau-weißen Farben zur Achslast und Umweltneutralität.
Prüfsiegel der TÜV Nord in schwarz-weiß

ECORASTER Bloxx is protected by the German utility model 202014106285[CNS1] [CNS1], the Polish utility model W.124709; US patent 10094073, EP patent 3237682. There are further industrial property rights and applications for industrial property rights outside Europe.
