Light, versatile and individual.
New design with
endless possibilities.
#kunststoffspule
Direkt aus der Spulen-Manufaktur – die individuelle Lösung für Ihre Wickelgüter.
Based in Arzberg, Upper Franconia, PURUS PLASTICS offers custom-made plastic reels for a wide range of requirements with the charm of a manufacturer. We work with you to design the right type of spool, creating a load carrier that is precisely tailored to your needs. This type of manufacturing is particularly advantageous and offers the ideal solution even for small and medium-sized batches – fair, sustainable, and transparent.
Our modern plastic reels make it easy to wind ropes, cables, chains, straps, and many other windable goods, store them safely, and unwind them just as easily when needed. Knots and untidily stored materials are now a thing of the past. Our reels make everyday life much easier, especially in industry, warehousing, and production, as they ensure order and efficiency wherever a wide variety of windable goods need to be stored.
The PURUS plastic reel was developed in collaboration with the August Hildebrandt Group—and is considered groundbreaking in many respects. The use of lightweight recycled plastic saves transport costs, makes handling particularly easy, and at the same time contributes to sustainability. We manufacture the FIDUS plastic reel in small and medium series, offering a customized solution with its handcrafted character.
Thanks to freely configurable dimensions, you can create custom-fit spools with the desired filling quantities. Whether flange size, core diameter, or winding width—you choose the parameters, and we implement them precisely. The result is a wide variety of design options and a sustainable plastic spool that exactly meets your requirements.
Lightweight
Plastic is lighter than wood and retains its shape and weight even when exposed to moisture.
Customized solutions instead of cookie-cutter approaches
Do you have special requirements and dimensions? No problem.
Made with recycled plastic
Sustainable in thought and action.
Cable fixing holes ⌀ 10 mm
Drainage slots

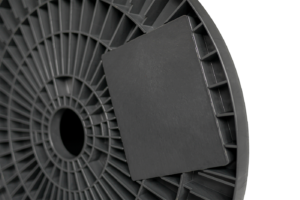

Label area 130 x 100 mm
Drive hole ⌀ 20 mm
Company logo 45 x 40 mm
What options can you choose from with FIDUS reels?
FIDUS plastic reels come standard with drive holes, practical drainage slots, and holes for cable fixation. Optionally, the plastic reel can be expanded with holes for cable or winding material feed-through.
For the core tube, you can choose between one inlet hole, two inlet holes, one inlet hole plus one sensor hole, or two inlet holes and two sensor holes. In addition, we can equip your FIDUS coil with label fields, cable outlet holes, and stacking aids. Would you like your logo to be permanently attached?
No problem, we can inject it into the flange. As you can see, we have a lot of flexibility when it comes to meeting your requirements.
Attachment plate label 130 x 100 mm smooth

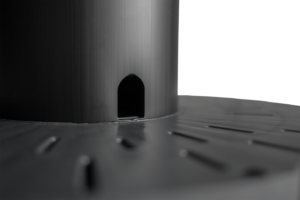

Cable entry hole
Cable outlet hole
Stacking aids, 4 pieces
Your advantage? The creative freedom!

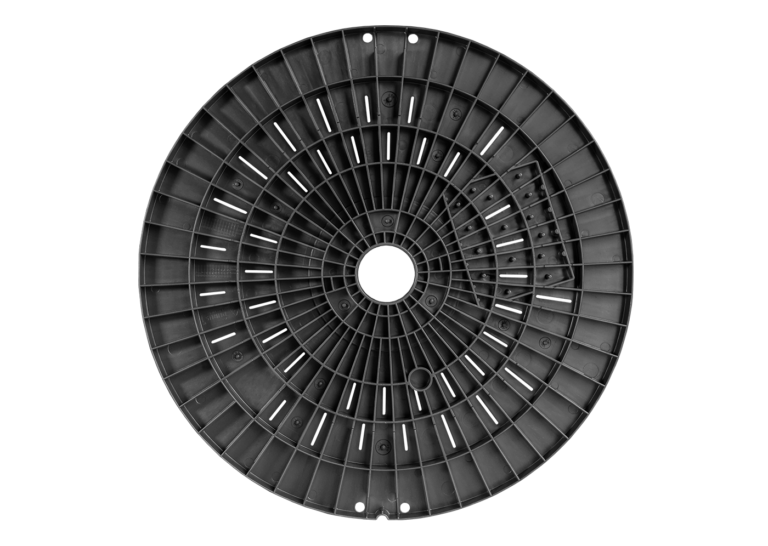

A plastic reel essentially consists of two different parts: flange and core. We offer flanges in three different sizes:
400 mm, 435 mm, and 500 mm in diameter.
You can also specify whether your reel should have an axle hole with a diameter of 56 or 80 mm.
For the core diameter, you can choose between 125 mm and 150 mm, which together with the winding width and flange diameter determines the winding volume.
We can manufacture the winding width for you in any size from 200 to 500 mm.
The maximum load weight for all sizes is 80 kg.
Please request other special sizes from the sample coil service or via the contact form.
What advantages do coils offer in everyday industrial use?
Modern plastic reels help you to safely store all windable goods in the warehouse and other locations in your business.
With our high-quality models, you benefit from the following advantages, among others:
- long shelf life
- a wide range of choices
- easy handling
and other advantages that can help you take your storage in the relevant areas to a new level.
Another particularly practical feature in this context is that plastic reels are characterized by their low weight. This means that the corresponding models – when empty – can usually be transported from A to B with ease.
How do plastic reels differ from one another?
Depending on the length of the rollable material you want to store on the coils, it may be advisable to use different core diameters. As a rule of thumb, the longer the material, the larger the diameter should be.
If you are unsure which model best suits your needs, it is usually safer to opt for the slightly larger version.
This also applies to the width of the plastic reel. An appropriate winding width ensures that you can benefit from even greater flexibility.
However, it would be a mistake to assume that the large reel is always the best solution. Therefore, take a little time to consider your individual requirements.
Who needs plastic reels?
Anyone who works with equipment such as cables, cords, and similar items and has always wondered how to store them safely and neatly will find plastic reels to be the perfect solution.
“Cable clutter” and the like are no longer an issue when used in industrial operations. Whether the reels are then hung up and rolled up or down, or simply placed on the floor, depends on your personal requirements.
One thing is certain: using items in this category can help you keep things tidier, make individual items easier to find, and optimize your processes.
Of course, you can use the reels not only to store chains, belts, and the like, but also to transport them. Once rolled up, they prevent tangling.
Plastic reels: frequently asked questions
Welche Vorteile bieten Kunststoffspulen gegenüber Holz?
- Witterungsbeständig
- Abwaschbar
- Bruchsicher & langlebig
- Ressourcenschonend durch Einsatz von Recyclingmaterial
- Leicht im Handling durch geringeres Eigengewicht
- Wiederverwendbar & recycelbar
Aus welchem Material bestehen die Spulen?
Die Spulen werden aus recyceltem Kunststoff (PP-PE) hergestellt – ressourcenschonend und umweltfreundlich.
In welchen Größen sind die Spulen erhältlich?
Die Kunststoffspulen sind in den Standardgrößen 400/435/500 mm verfügbar. Für spezifische Anforderungen bietet PURUS auch individuelle Sonderlösungen auf Anfrage an.
Können die Spulen individuell angepasst werden?
Ja, die Wickelbreite der Kunststoffspulen ist variabel und kann im Bereich zwischen 200-500 mm stufenlos bestellt werden.
Sind die Spulen für den Außenbereich geeignet?
Kunststoffspulen (Leerspulen) sind witterungsbeständig und somit problemlos im Außenbereich auf Palette lagerbar. Ein geeigneter Standort sollte eben, trocken und möglichst schattig sein.
Schutz vor UV-Strahlung: Kunststoff kann durch UV-Strahlung spröde werden und an Festigkeit verlieren. Daher ist es wichtig, die Kabelspulen vor direkter Sonneneinstrahlung zu schützen, z.B. durch Abdeckung oder Lagerung unter einem Dach.
Wie nachhaltig sind die Spulen aus Kunststoff von PURUS PLASTICS?
Die Kunststoffspulen bestehen vollständig aus Recyclingkunststoff und können nach Gebrauch wieder recycelt werden – ein geschlossener Materialkreislauf, ganz im Sinne der Kreislaufwirtschaft.
Wo werden die PURUS PLASTICS Spulen produziert?
Die Produktion erfolgt am Hauptsitz von PURUS PLASTICS in Deutschland.
Wie kann ich Kunststoffspulen von PURUS bestellen?
Sie können direkt über das PURUS Vertriebsteam bestellt werden. Zur Auslegung Ihrer gewünschten Spule nutzen Sie dazu das Kontaktformular auf der Website oder wenden Sie sich telefonisch bzw. per E-Mail an den Vertrieb Kunststoffspule:
E-Mail: info@kunststoffspule.de
Telefon: +49 (0)9233 7755 753
Welche Parameter sind zur Auslegung einer Spule nötig?
- Welches Wickelgut (z.B. Kabel)
- Außendurchmesser Wickelgut [mm]
- Gewicht Wickelgut [kg/m]
- Gewünschte Menge pro Spule (Länge Wickelgut) [m]
- Wickelvolumen falls bekannt [dm³]
- Flansch- und Kernrohrapplikationen (z.B. Kabeleingangsloch)
Would you like a sample reel?
We would be happy to provide you with a preliminary sample based on your specifications. Once we have discussed your requirements and preferences, your FIDUS plastic reel will generally be shipped within 48 hours. To request your reel, please contact our telephone support team by clicking on Sample Spool Request. Thank you.
What size do you need?
The “perfect size” of a plastic reel depends on several factors, including the type and length of the tapes.
Because we know how important it is to take an individual approach here, at PURUS PLASTICS we offer you the option of easily determining the diameter of your plastic reels yourself. Whether you want to use “just” one reel or combine several reels, you benefit from a high level of convenience and the option to expand your inventory again and again. Simply select the right flange size, core diameter, and winding width! We’ll take care of the rest!

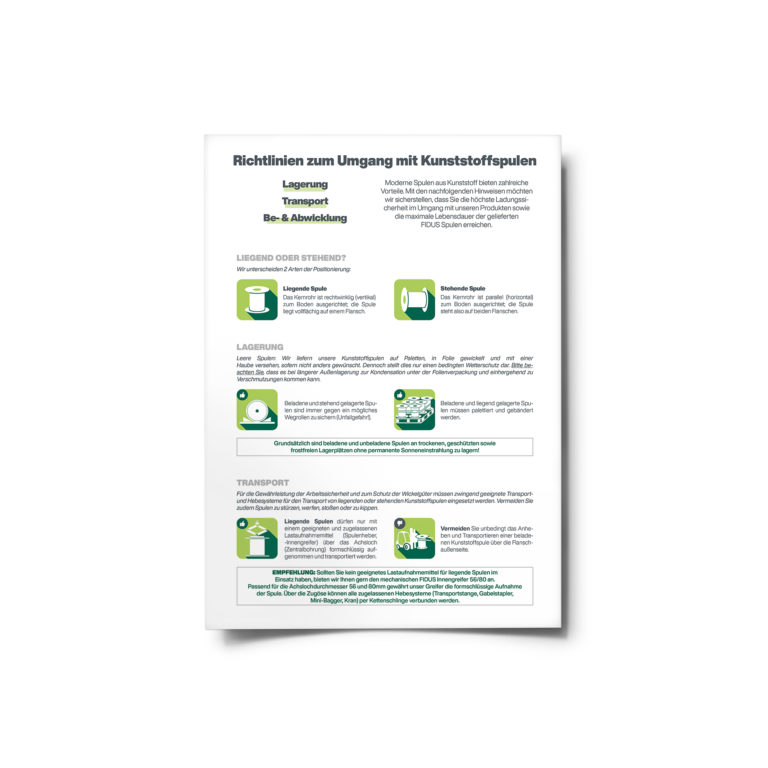

Guidelines for handling plastic spools
Modern plastic reels offer numerous advantages. With these instructions, we want to ensure that you achieve the highest load safety when handling our products and the maximum service life of the FIDUS reels supplied.
Sign up for our newsletter now and stay informed – everything you need to know about our plastic reel spools
Receive regular updates about our PURUS plastic spools. Whether you are interested in innovative product solutions, technical developments, application examples, or news from production and recycling—our newsletter will keep you up to date.
Your direct contact
Do you have any questions about our products or a specific project? We are happy to help.
Martin Wlasak
Sales International
Tel: +49 (0)9233 7755 753
Mobile: +49 (0)170 330 18 50
Fax: +49 (0)9233 7755 50
m-wlasak@purus-plastics.de
What are the advantages of the FIDUS plastic coil?
Winding goods require reels so that they can be transported safely. In addition to wires and cables, our FIDUS plastic reels are also used for ropes, chains, straps, and other items. Gone are the days of splintering and heavy wooden reels. The reel developed by PURUS is groundbreaking in many ways. With no mechanical connection and a smooth winding space, our reel can accommodate your wound goods. The lightweight recycled plastic saves significantly on transport costs and guarantees easy handling. The virtually freely configurable dimensions ensure tailor-made user solutions and the required winding volume. Numerous options cover all requirements and leave nothing to be desired in daily use. You choose the flange size, the core diameter, or even the winding width. As part of our manufacturing process, we are also open to small and medium quantities, because individual requirements call for individual solutions and cannot be met cost-effectively and sensibly with mass-produced goods. What remains is a wide range of design options and a sustainable plastic reel that meets your exact requirements. We are your reel manufacturer!
Plastic Reels Made from Recycled Materials
Environmental protection and sustainability play an important role in many companies. Our plastic spools are made from recycled materials and can help to reduce a company’s ecological footprint.
The surface can be easily cleaned of most contaminants and does not require much maintenance. In addition, plastic spools often prove to be much more robust than expected. Understandable! After all, no one wants to have to worry about the durability of their reels in their (often hectic) day-to-day business.
If you are looking for a plastic spool that is made from recycled materials and is also sturdy enough to be used for a long time, we look forward to hearing from you!
The “Made in Germany” result of professional cooperation
The FIDUS plastic reel combines a one-piece, reusable design with many well-thought-out details and options. In collaboration with the August Hildebrandt Group, the requirements and experience gathered on the market were combined with the plastics expertise of PURUS PLASTICS. The result is a uniquely customizable and completely sustainable transport spool for cables, chains, wires, and all other windable goods. We have already impressed numerous customers with special solutions and convinced them of the benefits of the FIDUS spool in everyday use.
Plastic Reels from PURUS PLASTICS
Purus Plastics spools can be used individually and offer a long service life. We do not rely on standards, but look forward to manufacturing spools that are perfectly suited to your area of application.
Of course, we are also available to answer any questions you may have about our products!
Would you like to integrate plastic spools into an existing system? Not sure which size is right for you? Interested in a disposable spool? No problem! Feel free to contact us!
We offer you the products you need to simplify the processes in your business—regardless of your industry!
