ECORASTER TE40 Aqua

Das Bodengitter für Flächen mit integrierter Bewässerung.

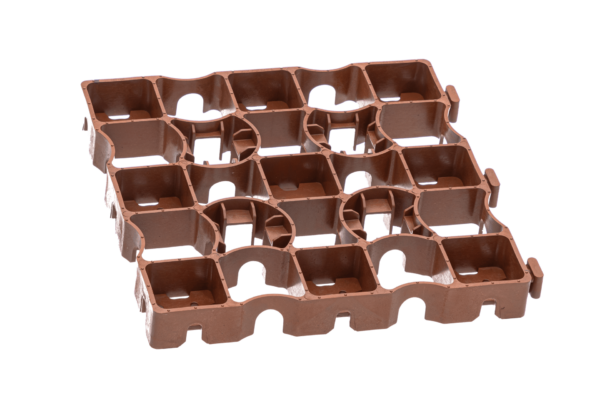

Freigestellte Darstellung eines ECORASTER E40 Aqua

Product description

Save effort and water with the new ECORASTER TE40 Aqua

A lot of water is needed in equestrian sports, including for the footing. Without the correct moisture content, the riding surface cannot perform to its full potential.

Various systems are currently available for system operators, including mobile sprinklers, surface sprinklers and ebb and flow floors.

During irrigation “from above”, the area can only be used to a very limited extent at best. Moisture damage in the riding arena or damage to obstacles etc. due to surface irrigation is often unavoidable.

An ebb and flow floor can become increasingly in need of maintenance over the period of use, and leaks in the expensive foil seals cannot always be avoided.

The TE40 aqua is a new addition to the ECORASTER® family. It is installed as usual as a separating layer in the riding arena, but offers protected guides for drip pipes. This allows the footing to be watered from below, which is quick and saves up to 40% water.

Grafische Darstellung des Aufbaus des Ecoraster E40 Aqua Systems von der Seite

Technical Specification

  • Dimensions: 333 x 333 x 40 mm
  • Wall thickness: up to 3.6 mm | 0.14 “
  • Weight per m²: 6.93 kg
  • Weight per piece: 0.77 kg
  • Form stability: Temperature range from -50° to +90° C
  • Moisture absorption: 0,01 %
  • Material: LD-PE, recycled
  • Load capacity: up to 800 per square meter (depending on filling)
  • Compressive strength: up to 20t axle load according to DIN 1072
  • Environmental sustainability: Environmentally neutral tested according to OECD 202:2004
  • Area per pallet: ≈ 74,67 m2
  • Dimensions: 105 x135 x 246 cm
  • Weight: approx. 445 kg (incl. load carrier and packaging)

If desired, irrigation can be controlled manually or using moisture sensors and an app.

You have the choice: as a complete system with the know-how of us and our experienced irrigation partner or for the installation of your own pipes.

Simple installation: During installation, a fleece is rolled out onto the prepared substructure and the drip pipes are laid on top as branch lines. The TE40 aqua is laid on top using the usual ECORASTER® installation method, ensuring that the drip pipes are correctly routed. For normal riding surfaces, one drip tube per ECORASTER® is sufficient, i.e. a distance of approx. 333 mm. On uneven surfaces where there is a risk of the drip tube falling downwards out of the guide, extra support can be provided with the precisely fitting clips. Once the pipes have been laid, they are connected as planned. The TE40 aqua is then filled with sand and covered with the footing. The capillary effect draws the water upwards and ensures even distribution.

Incidentally, the TE40 aqua has a larger contact surface compared to the classic TE40 and is therefore also suitable for laying on poor, soft or only slightly substructure. Laying directly on the lawn without a substructure? Talk to us.

Thanks to the individual design, shady areas or very sunny areas can be watered differently from each other.

Zwei Module der ECORASTER E40 Aqua seitlich mit integrierten Wasserrohren
Nahaufnahme von oben der Wasserrohre in einem E40 Aqua Element
Nahaufnahme der Führung der Wasserrohre in einem E40 Aqua Element
Draufsicht auf verlegtes ECORASTER E40 Aqua mit Wasserrohren und sandigem Untergrund
Eine große Rolle Bauvlies wird auf einem sandigen Boden ausgerollt
Eine Fläche Ecoraster E40 Aqua mit Wasserrohren liegen unbefüllt auf einem weißen Bauvlies
Draufsicht auf verlegtes ECORASTER E40 Aqua mit Wasserrohren
Detailaufnahme Ecoraster E40 Aqua mit Rohr unverfüllt
Nahaufnahme eines E40 Aqua mit Wasserrohr, das mit Sand verfüllt wird
Ecoraster E40 Aqua mit Wasserrohren werden mit Sand befüllt
Blick über einen mit E40 Aqua verlegten und eingesandeten Reitplatz
Ansicht von oben auf Sand mit Wasserflecken. Das Ecoraster E40 Aqua schaut an manchen Stellen hervor.

Applicable for

Downloads

Regularly tested and certified

Siegel für den Nachweis der NATO Zertifizierung
RAL Gütezeichen für Bodengitter aus Recycling Kunststoffen
TÜV Nord Prüfsiegel in blau-weißen Farben zur Achslast und Umweltneutralität.
Prüfsiegel der TÜV Nord in schwarz-weiß

ECORASTER Bloxx is protected by the German utility model 202014106285[CNS1] [CNS1], the Polish utility model W.124709; US patent 10094073, EP patent 3237682. There are further industrial property rights and applications for industrial property rights outside Europe.
