ECORASTER Bloxx – with intelligent drain channel

Quick and permeable ground reinforcement with a paving-stone look.

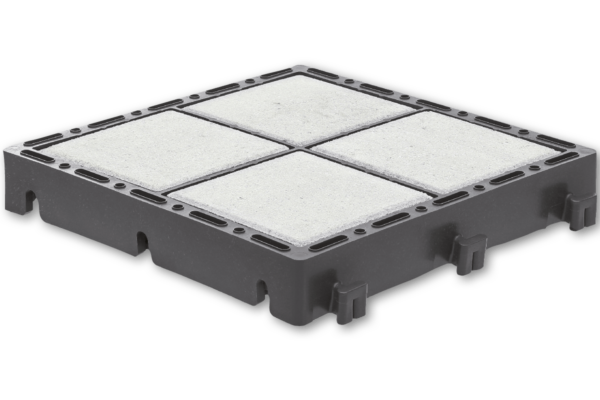

Freigestellte Darstellung eines ECORASTER Bloxx Moduls mit Betonsteinen

Product description

ECORASTER Bloxx functions as a retaining frame for the corresponding concrete blocks and features an integrated drainage channel that cannot become clogged. In addition to enabling high installation efficiency, this ensures consistent drainage rates and allows rainwater to infiltrate to a large extent. Thanks to the blocks available in different colors—or optionally in rubber or granite—surfaces can be designed very creatively—with ingenuity and a drainage channel, of course.
Note: If the Bloxx with four concrete blocks is too “wide” for you, Bloxx is also manufactured as an element for use with just two concrete blocks. This makes it easy to install curbs or parking lot/pathway markings.

ECORASTER Bloxx is inter alia protected by German Utility Model 201014106285, Polish Utility Model W.124709; US-Patent 10094073, European Patent Application 3237682 and further applications outside of Europe.

Technical Specification

  • Dimensions: 33,3 x 33,3 x 5 cm | 12.99 x 12.99 x 1.97 “
  • Wall thickness: up to 5 mm | 0.1968 “
  • Weight per piece: 0.78 kg (excl. concrete blocks)
  • Weight per m²: 7.02 kg (excl. concrete blocks)
  • Material: LD-PE, recycled
  • Area per pallet: ≈ 57.33 m²

Downloads

Regularly tested and certified

Siegel für den Nachweis der NATO Zertifizierung
RAL Gütezeichen für Bodengitter aus Recycling Kunststoffen
TÜV Nord Prüfsiegel in blau-weißen Farben zur Achslast und Umweltneutralität.
Prüfsiegel der TÜV Nord in schwarz-weiß

ECORASTER Bloxx is protected by the German utility model 202014106285[CNS1] [CNS1], the Polish utility model W.124709; US patent 10094073, EP patent 3237682. There are further industrial property rights and applications for industrial property rights outside Europe.
