ECORASTER E50 – the ground reinforcement system for heavy goods use.

The sealant-free solution for logistics, parking and storage area.

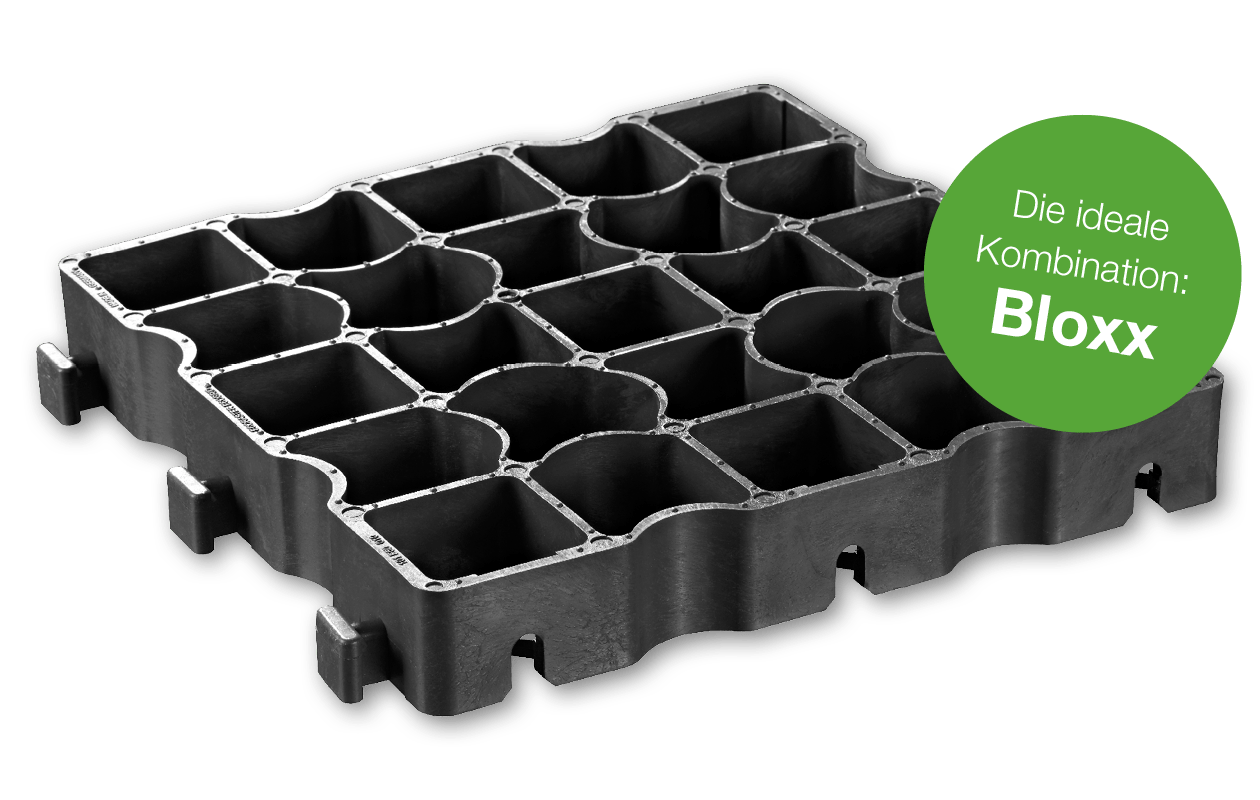

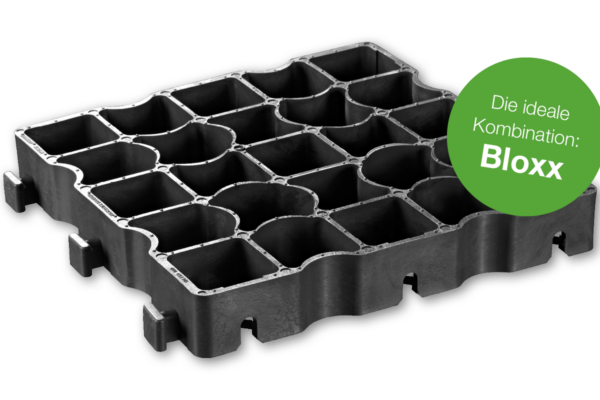

Freigestellte Darstellung eines ECORASTER E50

Product description

The ECORASTER E50 is the perfect solution for heavy-duty applications in civil engineering, gardening, and landscaping. Storage areas filled with gravel, parking lots with high traffic volumes, or green firefighting areas where load-bearing capacity is crucial in an emergency. The E50 is perfect for heavy loads and impresses with its wide wall thicknesses and extreme load-bearing capacity of up to 800 tons per square meter.

The ECORASTER E50 is ideal wherever functional stability under heavy loads is required:

  • Logistics and storage areas: Safe flooring in transshipment and storage areas.

  • Parking areas & traffic areas: Driveable and durable even with regular vehicle traffic.

  • Firefighting & rescue routes: Resilient in emergencies, without sealing.

  • Driveways & courtyards: Robust stabilization of driveways, courtyards, and company premises.

  • Public and commercial areas: Versatile use for squares, traffic islands, or access roads.

The ground grid can be filled with gravel, grit, or vegetation, allowing it to be adapted visually and functionally to any project requirement—whether as a robust parking lot reinforcement, a mud-free area in outdoor spaces, or a reinforced surface for logistics and operational areas.

Efficiency through modular design

Thanks to its modular plug-in system, large areas can be laid quickly and economically—without additional sealing, without time-consuming ground preparation, and with minimal tools. The high dimensional stability also ensures that the ECORASTER E50 retains its function and load-bearing capacity for years to come.

Technical Specification

  • Dimensions: 33.3 x 33.3 x 5 cm
  • Wall thickness: up to 7 mm
  • Weight per piece: 0.98 kg
  • Weight per m²: 8.82 kg
  • Material: LD-PE, recycled material, recyclable
  • Area per pallet: ≈ 57.33 m²

Downloads

Regularly tested and certified

Siegel für den Nachweis der NATO Zertifizierung
RAL Gütezeichen für Bodengitter aus Recycling Kunststoffen
TÜV Nord Prüfsiegel in blau-weißen Farben zur Achslast und Umweltneutralität.
Prüfsiegel der TÜV Nord in schwarz-weiß

ECORASTER Bloxx is protected by the German utility model 202014106285[CNS1] [CNS1], the Polish utility model W.124709; US patent 10094073, EP patent 3237682. There are further industrial property rights and applications for industrial property rights outside Europe.
