TP40 – das extrarobuste Gitter in der 40 mm-Klasse.

More surface area for heavy use.

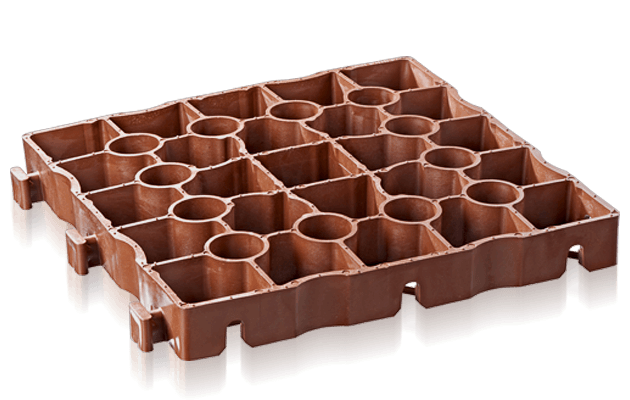

Freigestellte Darstellung eines ECORASTER TP40

Product description

The ECORASTER TP40 is a high-quality, robust ground grid element from the ECORASTER system – specially optimized for intensive use in stables and paddocks, open stables, and other heavily used outdoor areas. With its even larger grid surface, it offers improved safety, extremely low wear, and absolute dimensional stability, even under continuous load.

This combination of robust material and sophisticated geometry ensures that the TP40 retains its shape even with continuous use and forms a consistent, load-bearing surface.

Advantages of the ECORASTER TP40

  • High wear resistance and dimensional stability: Thanks to its reinforced structure, the floor grid can withstand heavy use and ensures a durable surface.

  • Large, even surface: The larger surface structure ensures even grip, fewer tripping hazards, and a secure standing surface—especially in stable and paddock areas.

  • Easy cleaning: Covered areas can be cleaned effortlessly and remain free of mud and slush.

  • Permeable and permanently free of surface sealing: thanks to its open cell structure, rainwater can drain directly into the ground.

The extra-sturdy grille in the 40 mm class

The ECORASTER TP40 was developed for intensively used outdoor areas and is particularly suitable for:

  • Paddocks and open stables: Stable, mud-free floors, even with frequent horse traffic.

  • Riding trails and forecourts: Resilient surfaces in front of stalls, washing areas, or feeding areas.

  • Forestry and agricultural areas: Versatile use even where robust substrates without sealing are required.

  • Courtyard and outdoor areas: Paved paths and areas that are also designed to withstand regular use.

The ECORASTER TP40 combines robust technology, high surface stability, and easy maintenance in a high-performance ground grid element. It is particularly suitable for intensively used areas with high traffic volumes where stability, safety, and soil quality are paramount. The combination of a large surface area, high dimensional stability, and a water-permeable structure makes the TP40 a reliable and durable solution for equestrian sports, agriculture, and heavily used outdoor areas.

Technical Specification

  • Dimensions: 33,3 x 33,3 x 4 cm | 12.99 x 12.99 x 1.57 “
  • Wall thickness: up to 4,0 mm | 0.16 “
  • Weight per piece: 0.77 kg
  • Weight per m²: 6.93 kg
  • Material: LD-PE, recycled
  • Area per pallet: ≈ 74,67 m²

Downloads

Regularly tested and certified

Siegel für den Nachweis der NATO Zertifizierung
RAL Gütezeichen für Bodengitter aus Recycling Kunststoffen
TÜV Nord Prüfsiegel in blau-weißen Farben zur Achslast und Umweltneutralität.
Prüfsiegel der TÜV Nord in schwarz-weiß

ECORASTER Bloxx is protected by the German utility model 202014106285[CNS1] [CNS1], the Polish utility model W.124709; US patent 10094073, EP patent 3237682. There are further industrial property rights and applications for industrial property rights outside Europe.
